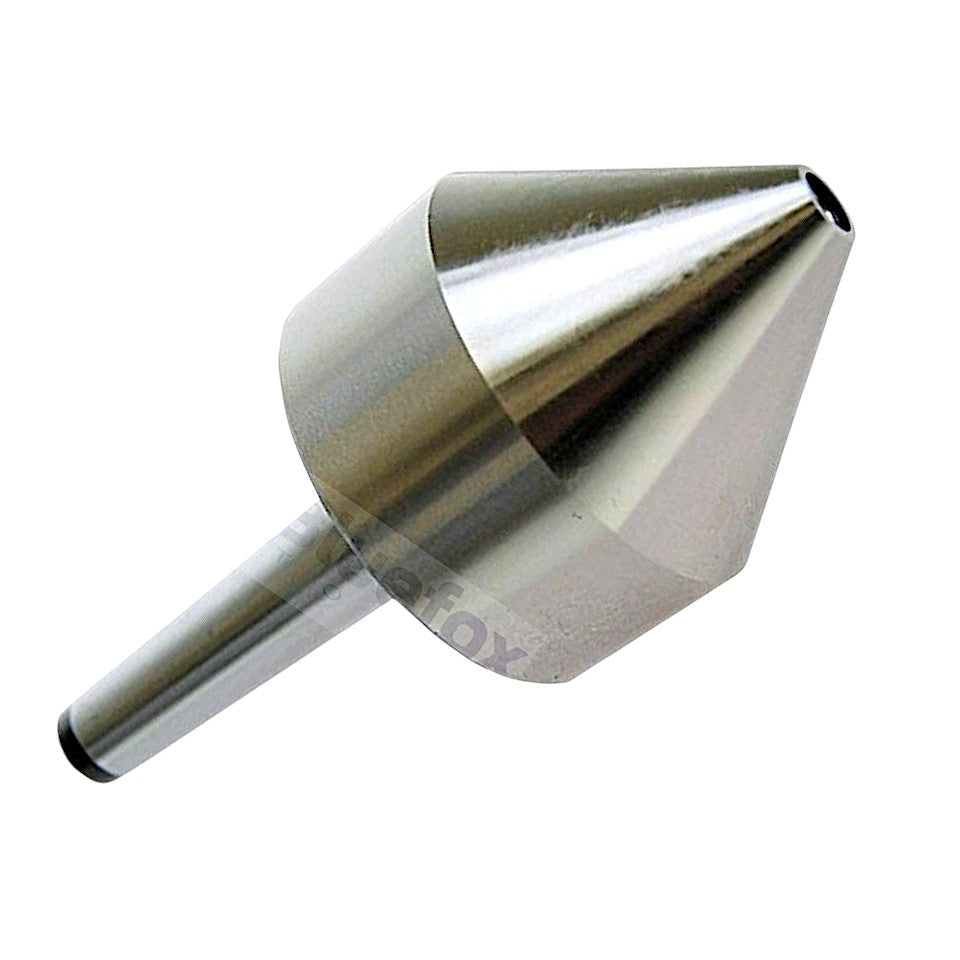

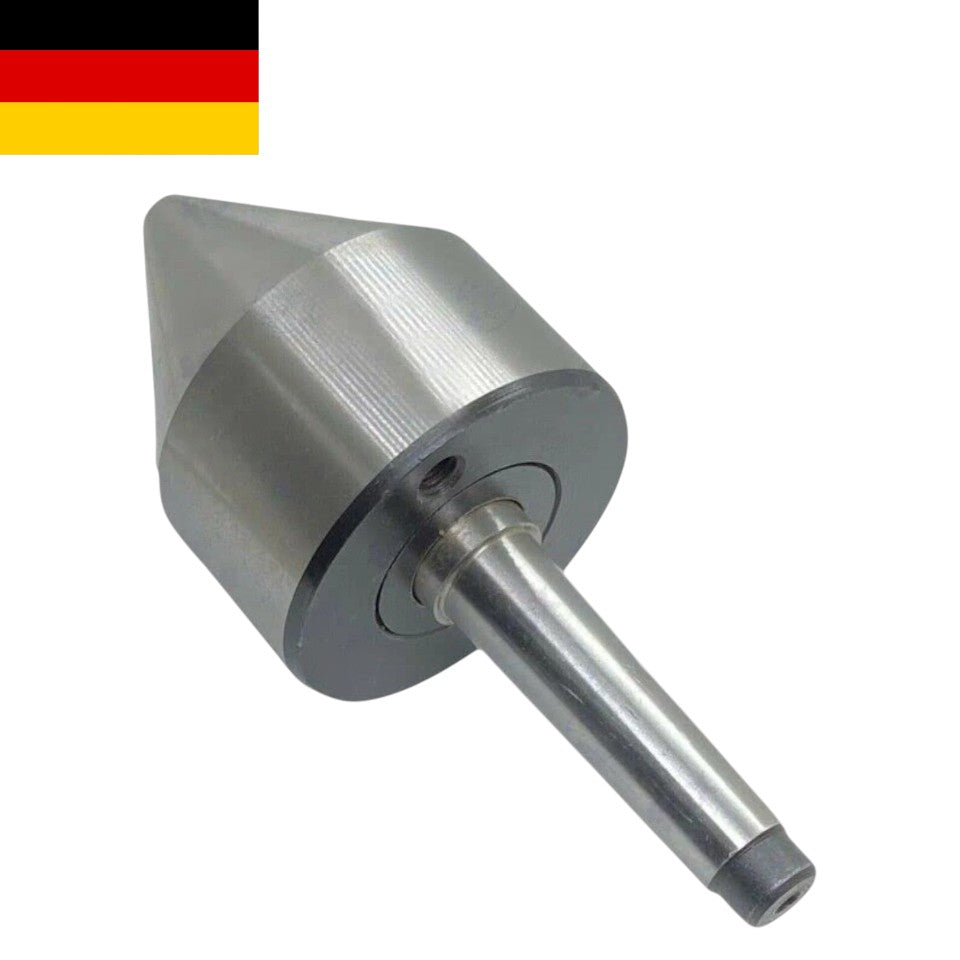

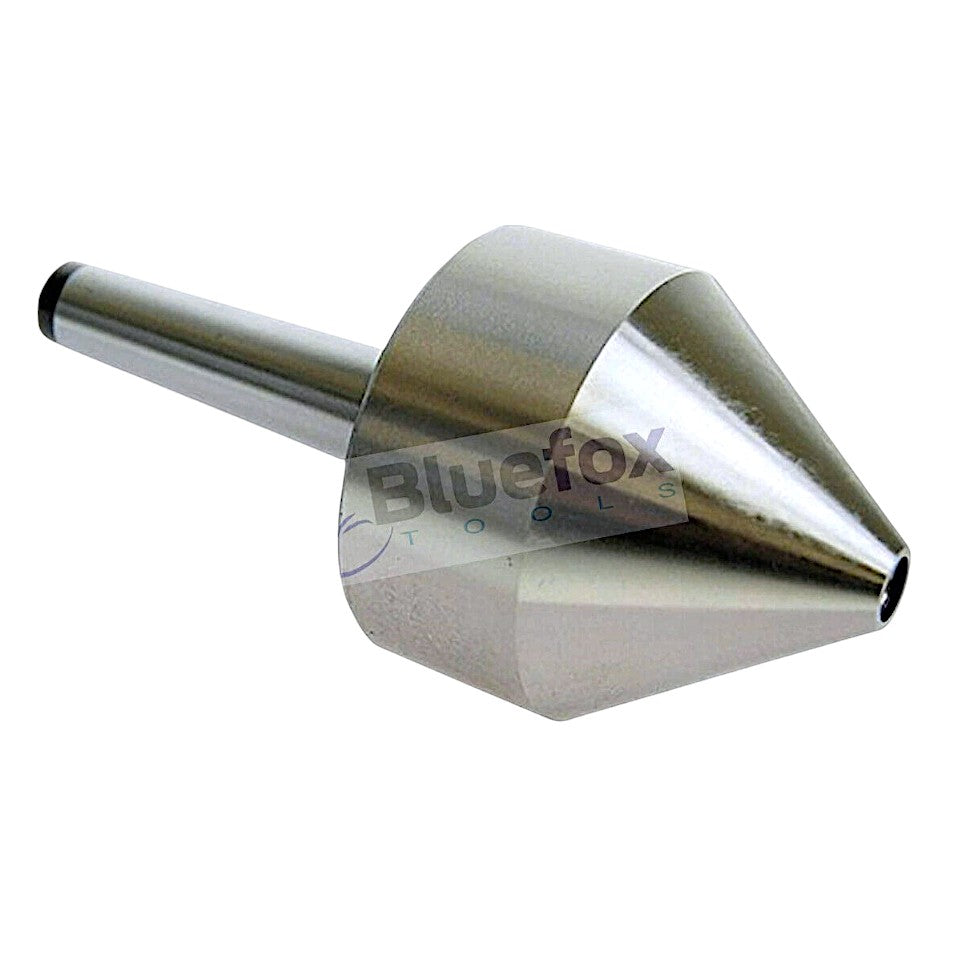

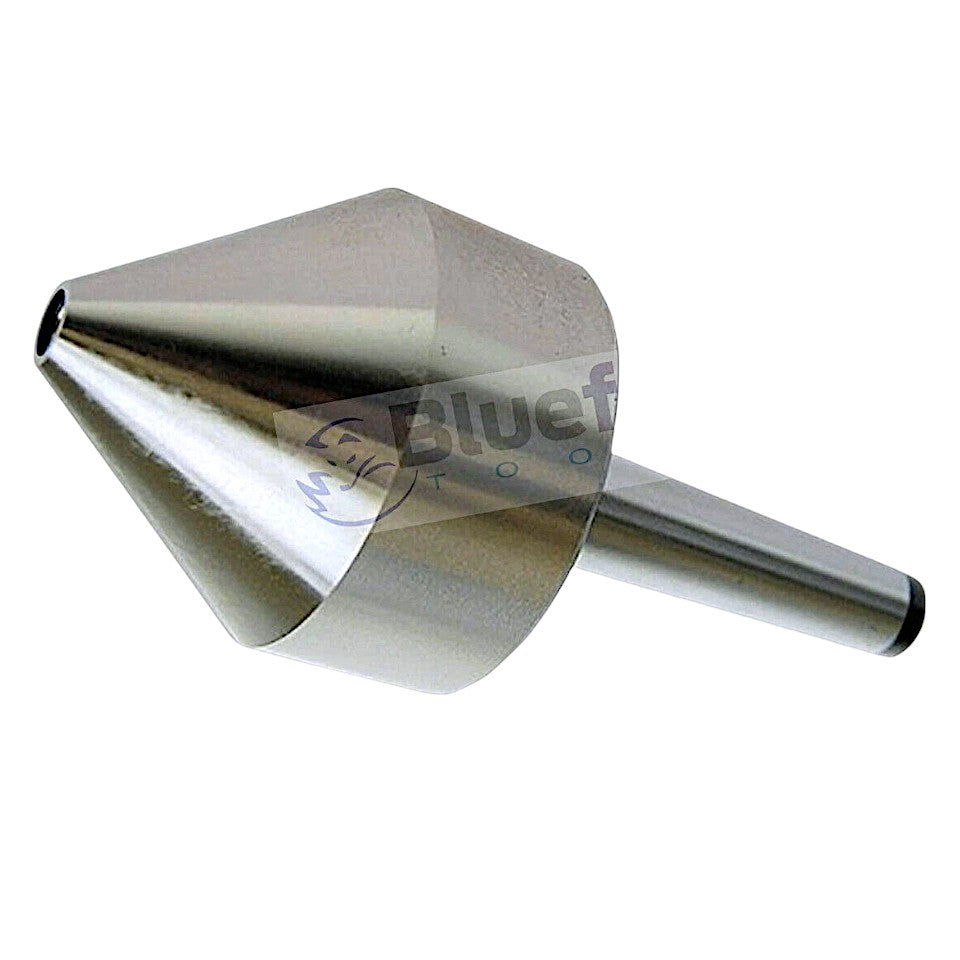

Heavy Duty MT3 Bull Nose Live Revolving Centre for Pipe, Tube & Hollow Workpieces

The MT3 Bull Nose Live Revolving Centre is designed specifically for supporting pipes, tubes, hollow shafts, cored holes, and large diameter workpieces during turning and machining operations. With a holding capacity of 13mm to 62mm (1/2" to 2-1/2"), this live center provides stable support and improved accuracy when working with hollow components that cannot be effectively supported using standard pointed centers.

Manufactured from heat-treated hardened high carbon alloy steel, the bull nose head is hardened to 55-60 HRC for excellent wear resistance and durability. The precision-engineered revolving center features preloaded multi-bearing construction, ensuring smooth rotation and superior radial and thrust load capacity for demanding workshop and industrial applications.

Ideal for machine shops, fabrication workshops, tool rooms, maintenance departments, and production machining environments.

Key Features

  • MT3 Bull Nose Live Revolving Centre
  • Designed for pipes, tubes, hollow shafts, and cored workpieces
  • Holding capacity from 13mm to 62mm
  • Heat-treated hardened high carbon alloy steel head
  • Head hardness: 55-60 HRC
  • Precision preloaded multi-bearing system
  • Excellent radial and thrust load capacity
  • Smooth revolving action for accurate machining
  • Grease nipples provided for easy maintenance
  • Suitable for professional and industrial applications

Specifications

Specification Details
Product Type Bull Nose Live Revolving Centre
Morse Taper MT3
Holding Capacity 13mm – 62mm
Holding Capacity (Imperial) 1/2" – 2-1/2"
Head Material Hardened High Carbon Alloy Steel
Head Hardness 55–60 HRC
Bearing Type Precision Multi-Bearing
Lubrication Grease Nipples Provided

Applications

  • Pipe turning operations
  • Tube machining
  • Hollow shaft support
  • Cored hole machining
  • Large diameter workpiece support
  • Precision lathe turning
  • Fabrication workshop operations
  • Tool room machining
  • Engineering workshop applications
  • Industrial production machining

Benefits

  • Provides secure support for hollow workpieces
  • Minimizes vibration and chatter
  • Improves machining accuracy and surface finish
  • Handles both radial and thrust loads efficiently
  • Long-lasting hardened alloy steel construction

Suitable For

  • Engine Lathes
  • Tool Room Lathes
  • Precision Lathes
  • Industrial Turning Centers
  • Fabrication Workshops
  • General Metalworking Applications

Package Includes

  • 1 × MT3 Bull Nose Live Revolving Centre
