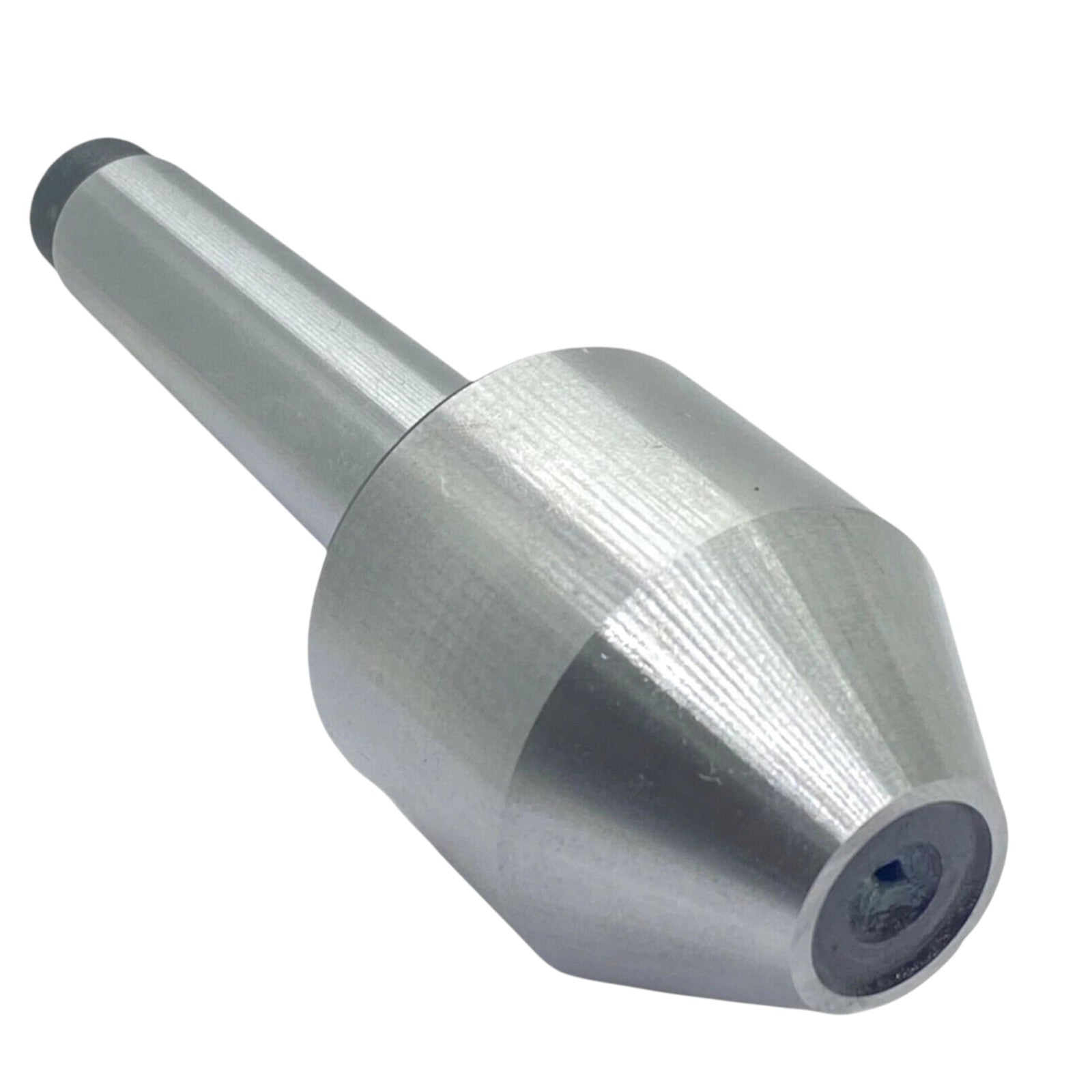

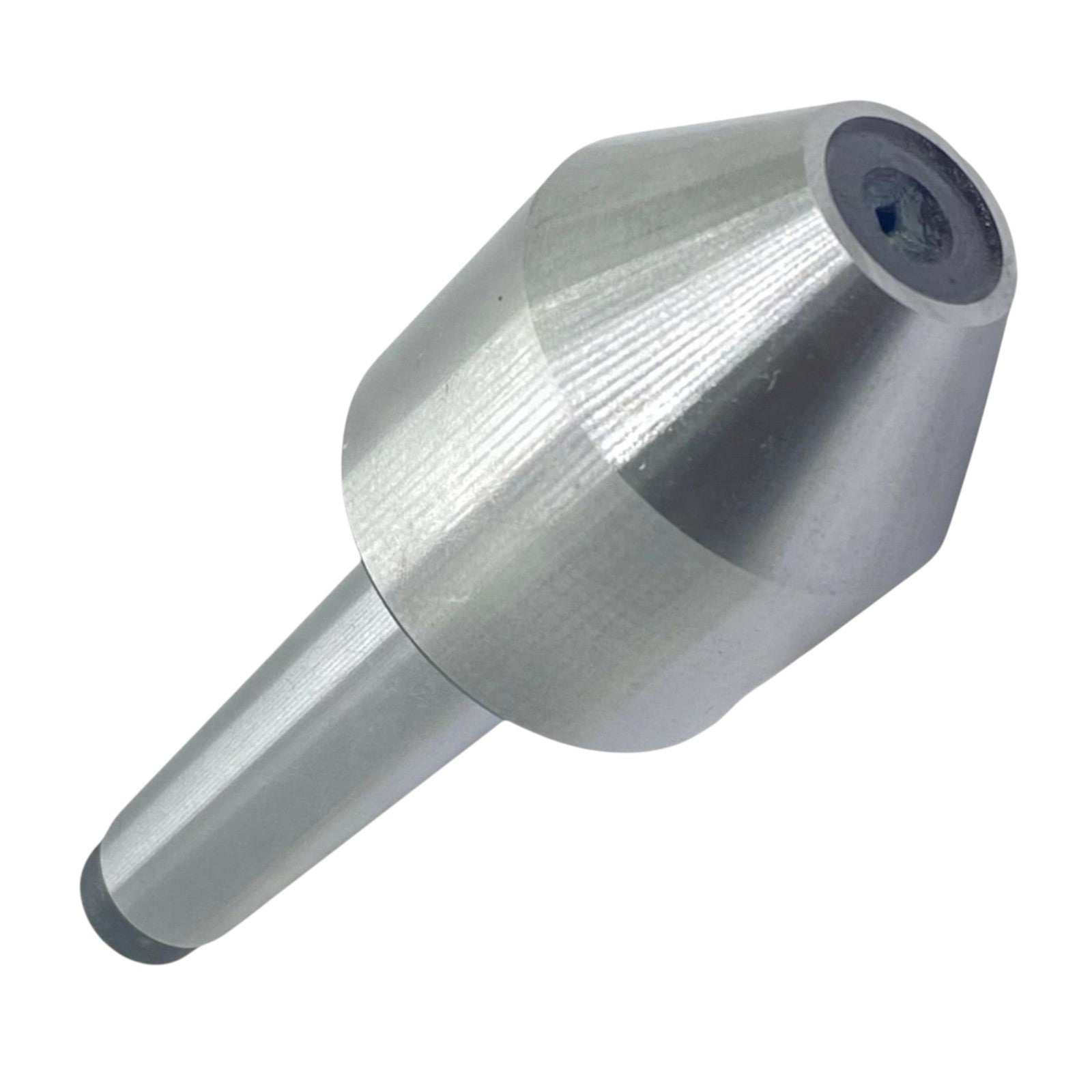

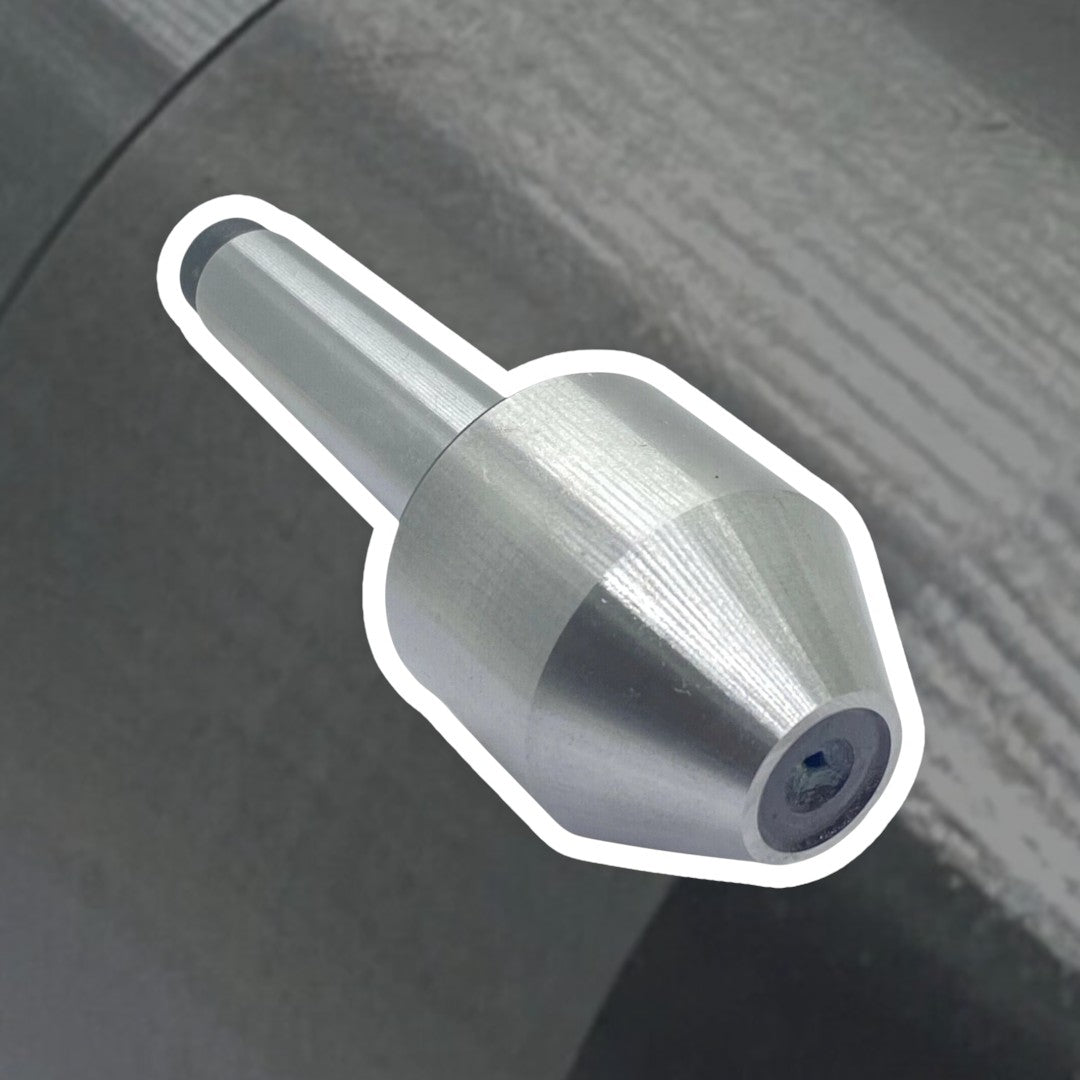

MT3 Bull Nose Revolving Live Center for Pipe & Tube Work | 1" to 2" Capacity | Morse Taper 3 Live Center

🔹 Precision MT3 Bull Nose Live Center for Hollow & Large Diameter Workpieces

The MT3 Bull Nose Revolving Live Center is engineered for supporting pipes, tubes, hollow components, cored holes, and large-diameter workpieces during turning and machining operations. Its bull nose design provides superior contact and stability when working with hollow materials where standard pointed live centers cannot be used effectively.

Manufactured from heat-treated high carbon alloy steel and hardened to 55–60 HRC, this live center delivers exceptional durability, wear resistance, and long service life. The precision preloaded multi-bearing system ensures smooth rotation, excellent radial support, and high thrust load capacity for accurate machining performance.

Suitable for professional workshops, toolrooms, fabrication shops, and industrial lathe applications.

✨ Key Features

✅ Special Bull Nose Design for Pipe & Tube Work

✅ Morse Taper No. 3 (MT3) Shank

✅ Ideal for Hollow Components & Cored Holes

✅ Precision Preloaded Multi-Bearing Construction

✅ High Thrust & Radial Load Capacity

✅ Heat-Treated High Carbon Alloy Steel Head

✅ Hardened to 55–60 HRC for Extended Service Life

✅ Smooth Rotation for Improved Machining Accuracy

✅ Grease Nipples for Easy Lubrication & Maintenance

📏 Specifications

🔹 Product Type: Bull Nose Revolving Live Center

🔹 Taper Size: Morse Taper No. 3 (MT3)

🔹 Holding Capacity: 1" to 2" (25.4mm – 50.8mm)

🔹 Material: High Carbon Alloy Steel

🔹 Head Hardness: 55–60 HRC

🔹 Bearing System: Precision Preloaded Multi Bearings

🔹 Lubrication: Grease Nipples Provided

🔹 Application: Pipe Turning, Tube Work, Hollow Components & Large Diameter Workpieces

🎯 Ideal For

🔧 Engine Lathes

🔧 Toolroom Lathes

🔧 Pipe Turning Operations

🔧 Tube Machining

🔧 Hollow Workpiece Support

🔧 Metal Fabrication Workshops

🔧 Precision Engineering

🔧 Industrial Machining Applications
