MT3 Revolving Live Center Bull Nose for Pipe & Tube Work – 1/2" to 3" Capacity (12–78 mm)
MT3 Revolving Live Center Bull Nose for Pipe & Tube Work – 1/2" to 3" Capacity (12–78 mm)
MT3 Revolving Live Center Bull Nose for Pipe & Tube Work – 1/2" to 3" Capacity (12–78 mm)
Tags: / / / / / / / / / /

MT3 Revolving Live Center Bull Nose for Pipe & Tube Work – 1/2" to 3" Capacity (12–78 mm)

4.5 rating ( 2334 )
$62.75
$62.75

Tax included

Stock Availability

FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA   •   AVAILABLE IN USA   •   AVAILABLE IN UNITED KINGDOM   •   AVAILABLE IN GERMANY   •   AVAILABLE IN AUSTRALIA
Secured Payment
Description
Description
x

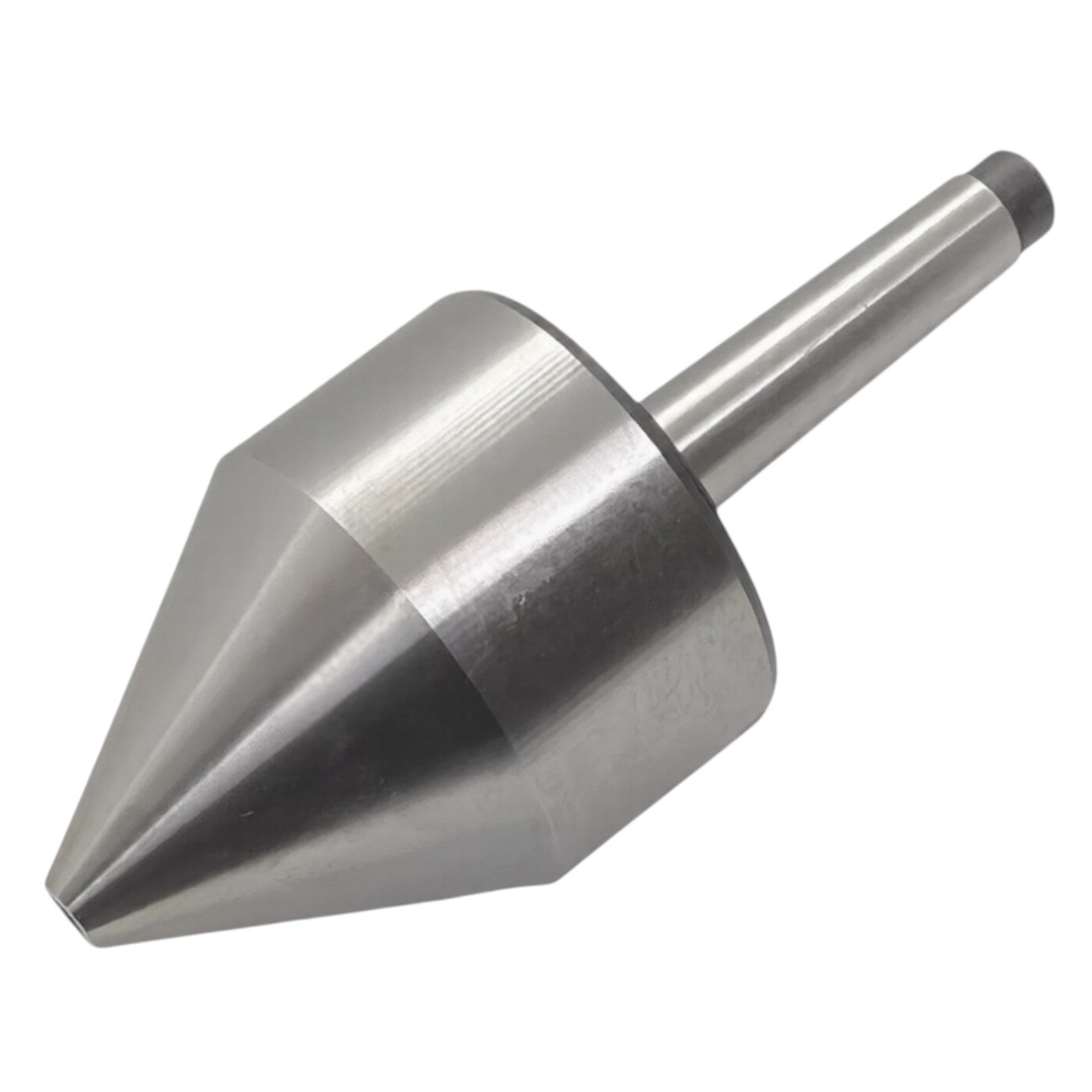

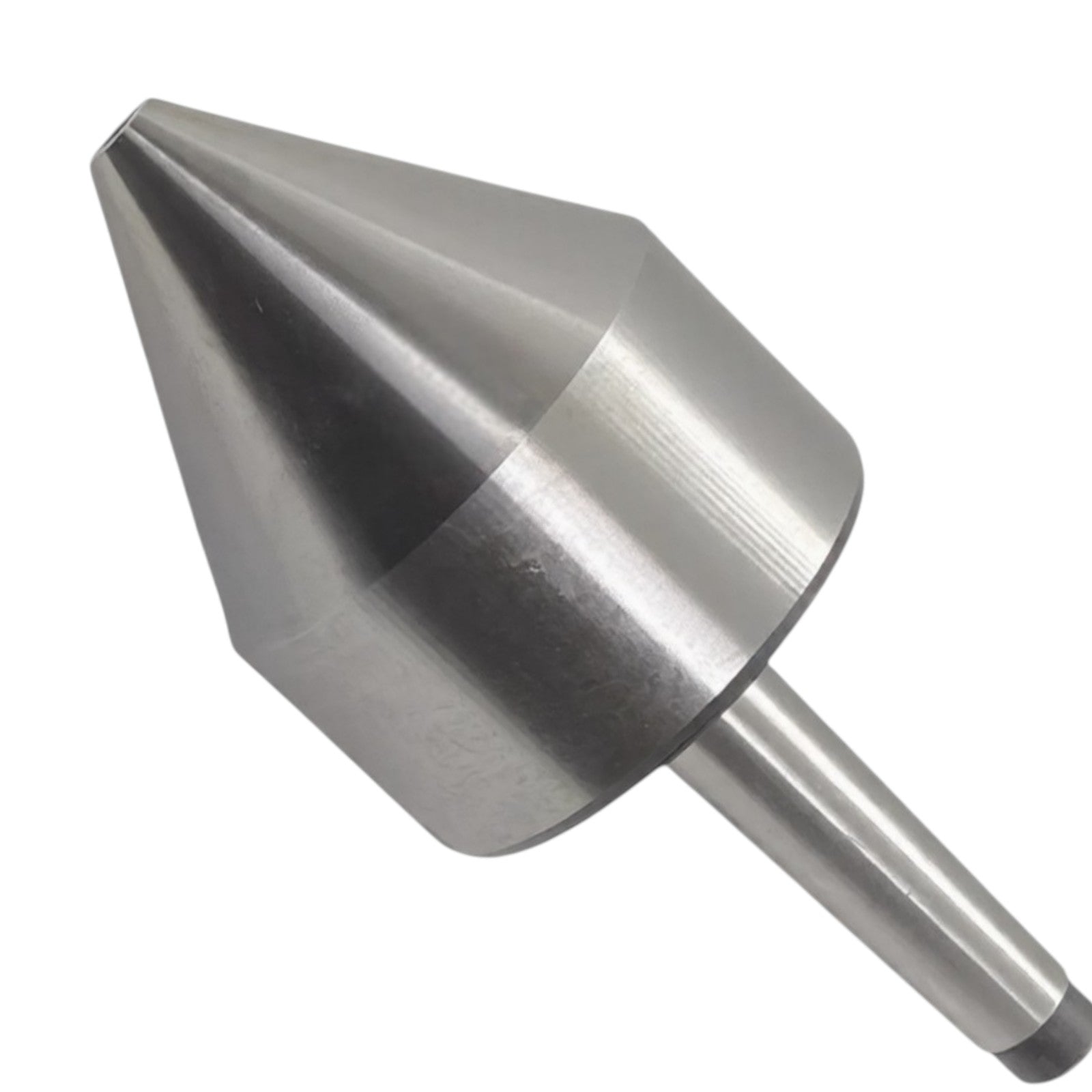

The MT3 Revolving Live Center Bull Nose is a heavy-duty precision lathe accessory designed specifically for pipe, tube, and hollow work machining. With a wide holding capacity from 1/2" to 3" (12 mm to 78 mm), this live center is ideal for supporting large-diameter centers, cored holes, and tubular components during turning operations.

Built with preloaded, well-greased multi-bearing construction, it provides excellent radial and thrust load capacity, ensuring smooth rotation, reduced vibration, and improved surface finish. The center is equipped with grease nipples on both the tail and body, allowing easy maintenance and long service life when lubricated with high-quality bearing grease or oil.

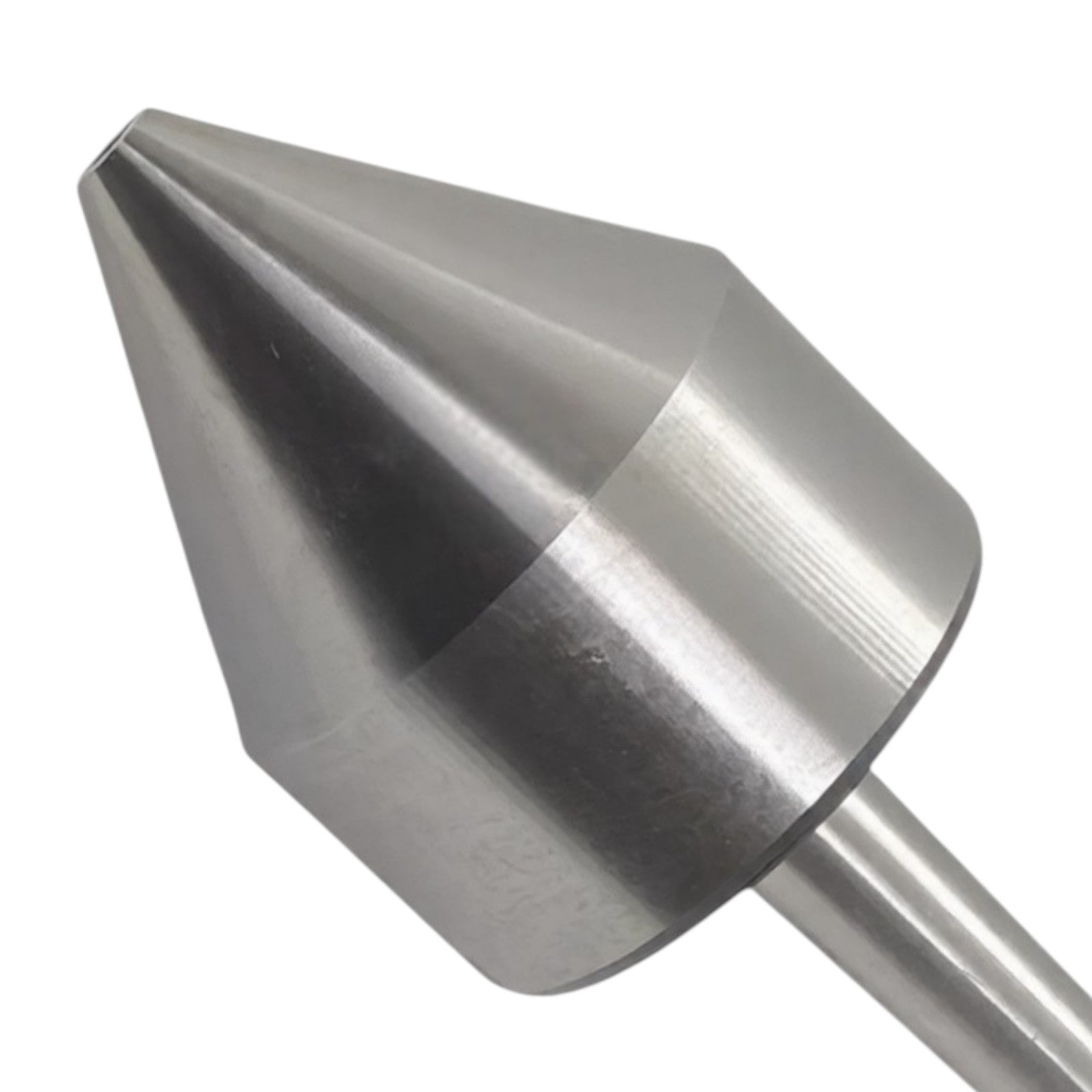

The bull nose head is manufactured from heat-treated, hardened high carbon alloy steel and finished to a hardness of 55–60 HRC, offering exceptional wear resistance and durability in demanding workshop environments. The Morse Taper 3 (MT3) shank ensures secure and accurate mounting in lathe tailstocks.

Key Features

  • Wide Holding Capacity – Supports pipe and tube work from 1/2" to 3" (12–78 mm)
  • MT3 Shank – Morse Taper 3 for accurate and rigid tailstock mounting
  • Bull Nose Design – Ideal for hollow work, cored holes, and large diameter components
  • Preloaded Multi Bearings – Ensures smooth rotation with high thrust and radial load capacity
  • Hardened Steel Head – Made from heat-treated high carbon alloy steel for long life
  • High Hardness – Head hardened to 55–60 HRC for wear resistance
  • Easy Maintenance – Grease nipples provided on tail and body for efficient re-lubrication
  • Professional Performance – Improves machining accuracy and surface finish

Technical Specifications

  • Product Type: Revolving Live Center (Bull Nose)
  • Shank Size: Morse Taper 3 (MT3)
  • Holding Capacity: 1/2" – 3" (12 mm – 78 mm)
  • Head Material: High Carbon Alloy Steel
  • Hardness: 55–60 HRC
  • Bearing Type: Preloaded multi-bearing system
  • Application: Pipe work, tube work, hollow and cored components
