Complete MT3 Tailstock Threading & Tapping System for Lathes

The BLUEFOX MT3 Tailstock Tap & Die Holder Set is a versatile 8-piece threading and tapping kit designed to produce accurate internal and external threads on lathes. Mounted directly in a Morse Taper 3 (MT3) tailstock, the system allows taps and dies to remain perfectly aligned with the workpiece, reducing thread errors and minimizing tap breakage.

The holder slides smoothly on the tailstock-mounted arbor, allowing controlled threading operations while maintaining alignment. When hand pressure is released, the tap or die can rotate freely with the spindle. For larger thread sizes, the included threaded stop handle can be positioned against the lathe carriage to prevent rotation and provide greater control during cutting.

Suitable for machine shops, engineering workshops, maintenance departments, toolrooms, and model engineering applications.

Key Features

Complete 8-piece tailstock threading kit
Morse Taper 3 (MT3) arbor
Supports both tapping and die threading operations
Floating sliding holder design for accurate alignment
Includes tap chucks and die holders
Knurled sleeve for comfortable handling
Threaded stop handle for larger thread cutting operations
Reduces tap breakage and threading errors
Ideal for internal and external thread production
Professional workshop quality

Specifications

Specification	Details
Arbor Type	Morse Taper 3 (MT3)
Kit Type	Tailstock Tap & Die Holder Set
Total Pieces	8 Pieces
Die Sizes Supported	13/16", 1", 1-1/2" O.D.
Tap Chuck Capacity	0 – 1/4"
Tap Chuck Capacity	1/4" – 1/2"
Operation	Sliding Floating Type

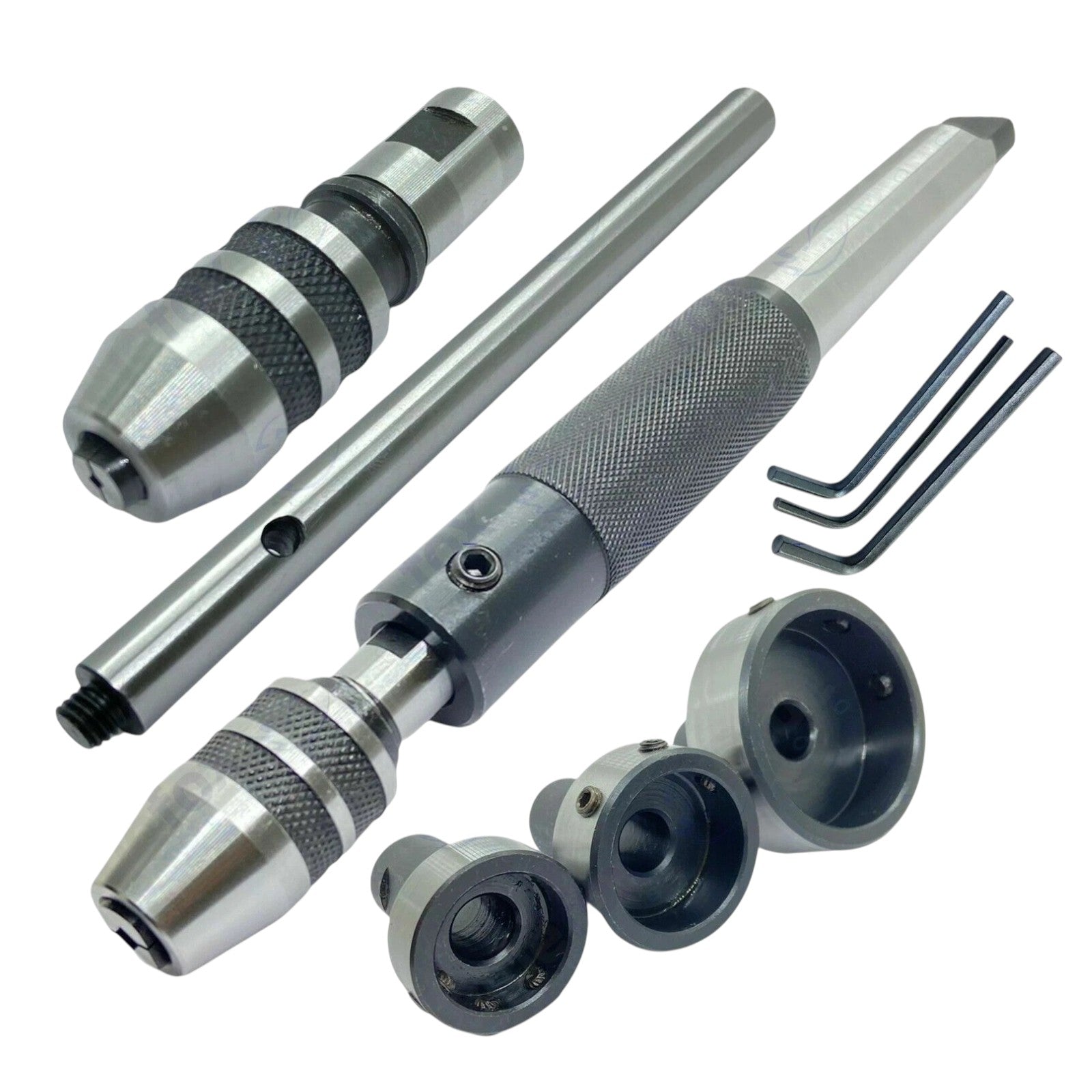

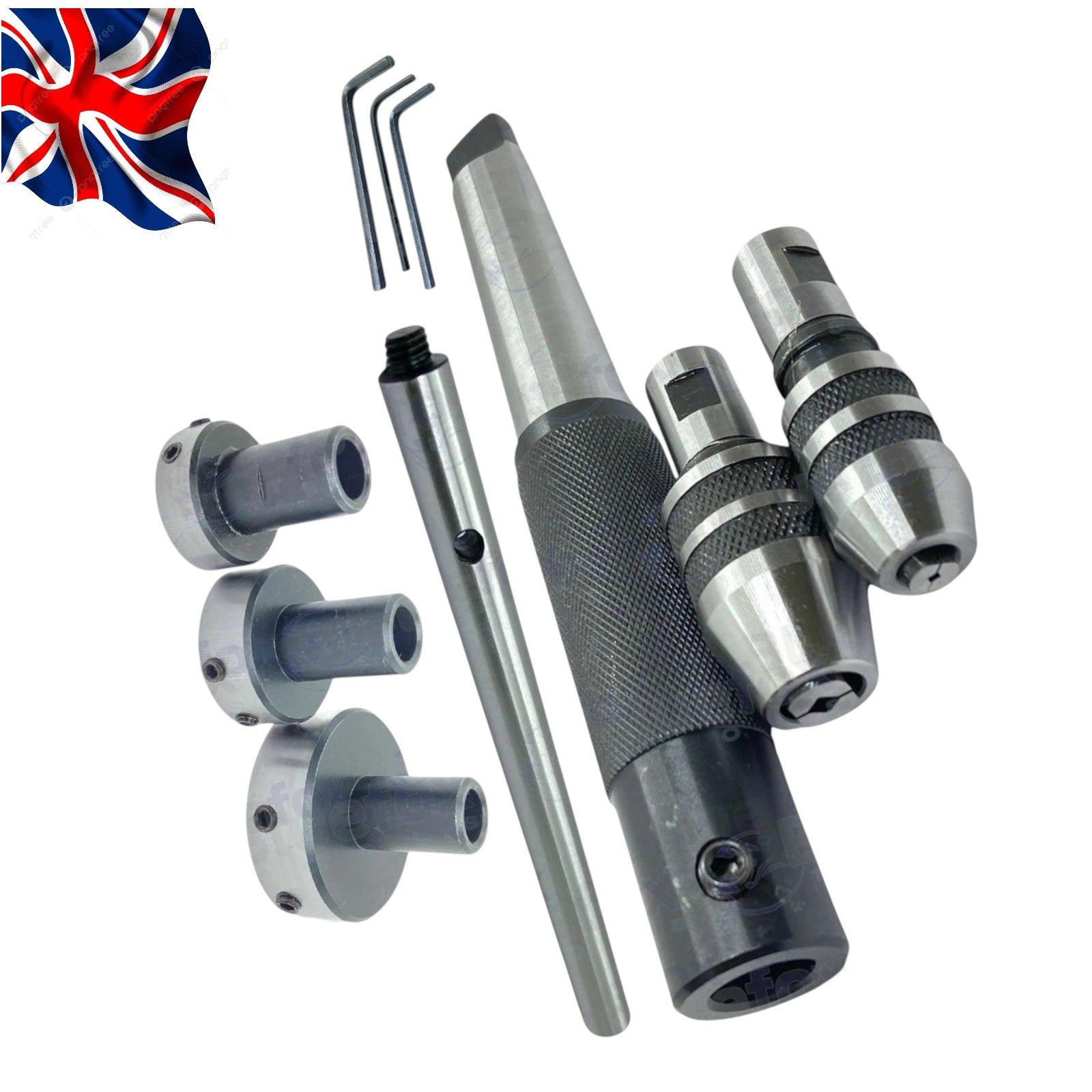

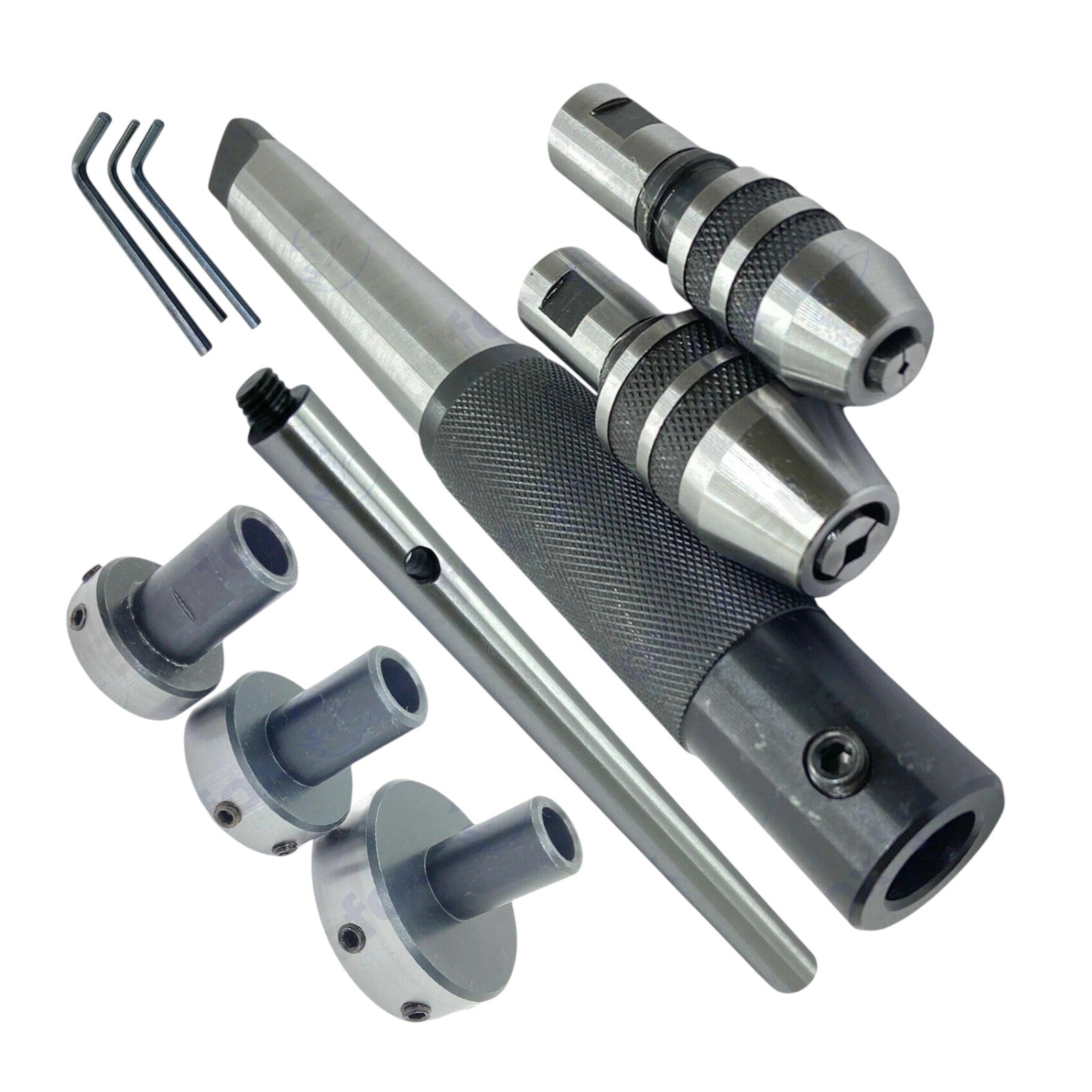

Included Components

1 × MT3 Morse Taper Arbor
1 × Sliding Holder Assembly
1 × Knurled Sleeve Holder
1 × Threaded Stop Handle
2 × Tap Chucks
- 0 – 1/4"
- 1/4" – 1/2"
3 × Round Die Holders
- 13/16"
- 1"
- 1-1/2"

Applications

Internal thread cutting
External thread cutting
Tapping operations
Die threading
Precision engineering
Toolroom work
Machine maintenance
Model engineering
Production machining
Workshop fabrication

Benefits

Improved Thread Accuracy

Maintains alignment between the tap, die, and workpiece throughout the cutting operation.

Reduced Tap Breakage

Floating action minimizes side loading and stress on taps.

Internal & External Threading

One kit handles both tapping and die-threading applications.

Professional Lathe Accessory

Ideal for accurate threading on engine lathes and toolroom machines.

Versatile Capacity

Accommodates a range of common tap sizes and round die diameters.

Compatible Machines

Suitable for:

MT3 Tailstock Lathes
Engine Lathes
Toolroom Lathes
Bench Lathes
Precision Workshop Machines

Typical Uses

Manufacturing threaded shafts
Internal thread creation
Repair and maintenance work
Prototype production
Toolmaking
Engineering workshop projects

Package Includes

1 × MT3 Morse Taper Arbor
1 × Sliding Holder Assembly
1 × Knurled Sleeve Holder
1 × Threaded Stop Handle
2 × Tap Chucks
3 × Round Die Holders
