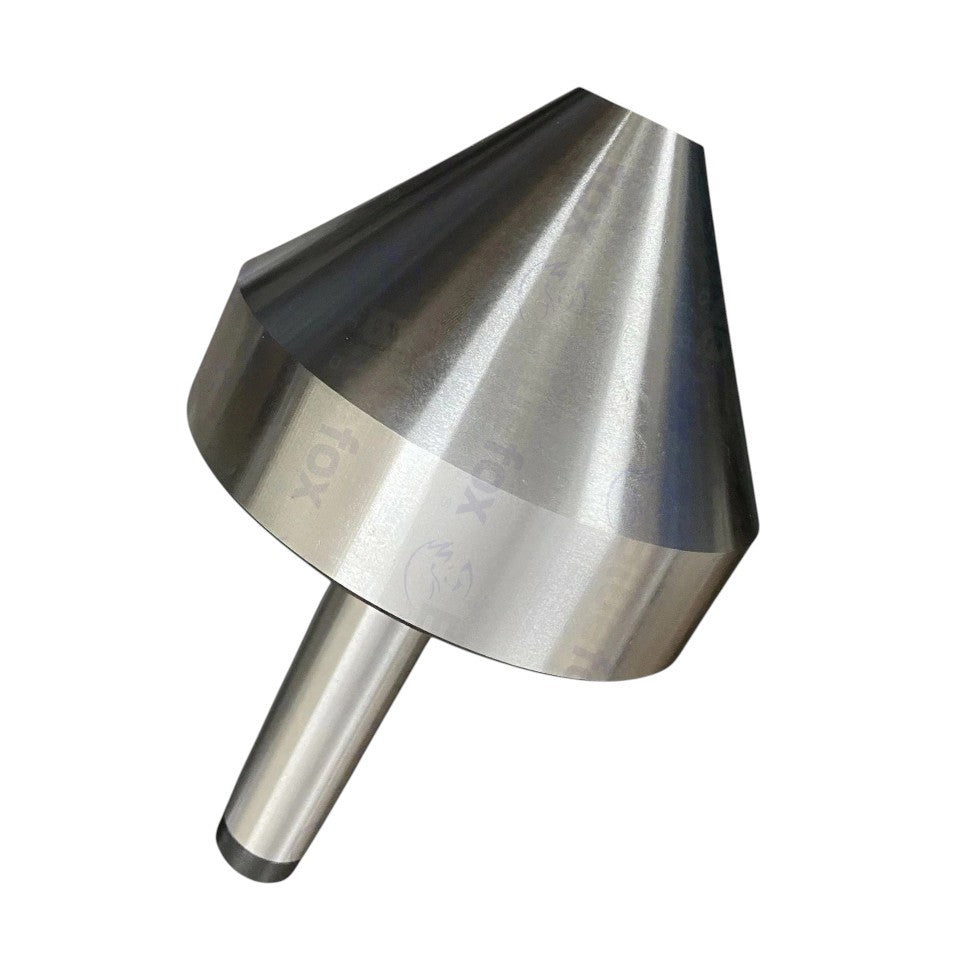

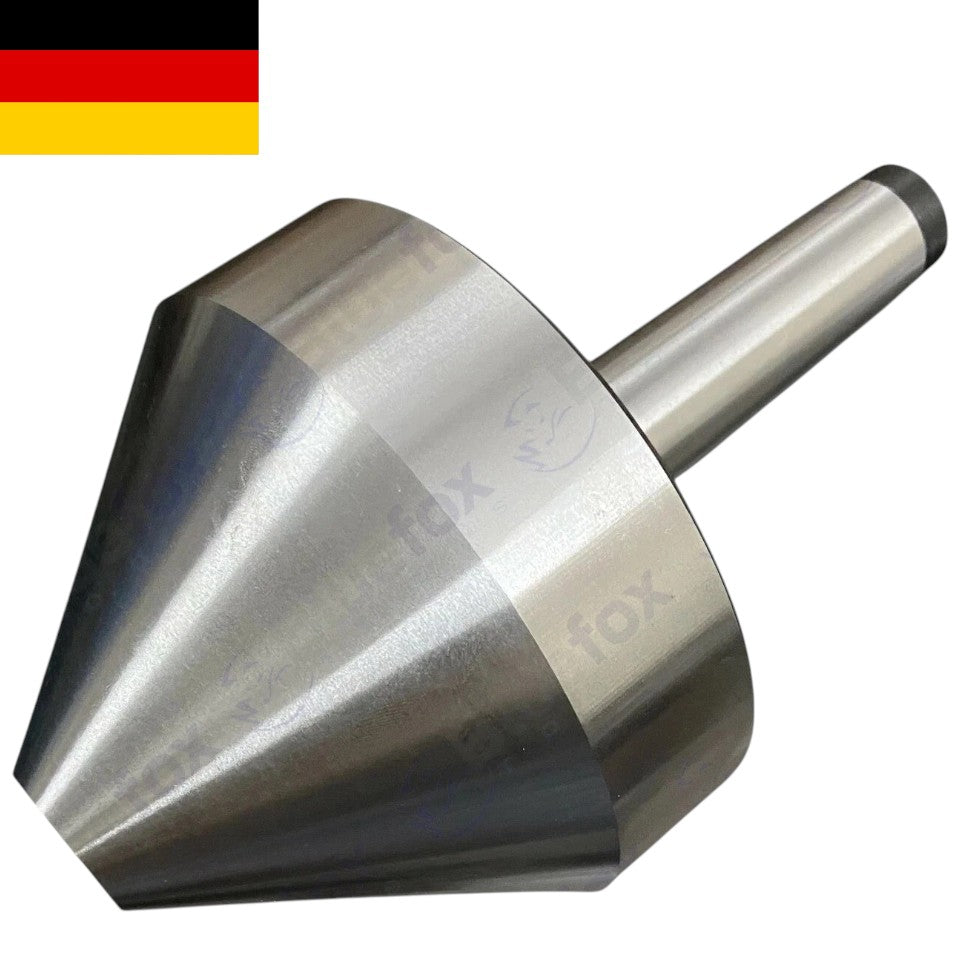

Heavy Duty MT4 Bull Nose Live Revolving Center for Pipe & Tube Work

This MT4 Bull Nose Live Revolving Center is specially designed for supporting pipes, tubes, hollow workpieces, large diameter components, and cored holes during machining operations. Featuring a large bull nose head with a working capacity of 35mm to 128mm, it provides stable support and improved concentricity when machining hollow or thin-walled workpieces.

Manufactured from heat-treated hardened high carbon alloy steel, the center is engineered for durability, wear resistance, and long service life. The precision-bearing assembly incorporates preloaded and factory-greased multi-bearing construction, ensuring excellent radial and thrust load capacity while maintaining smooth rotation under demanding machining conditions.

Suitable for lathes, tool rooms, fabrication workshops, production facilities, and industrial machining applications.

Key Features

  • Heavy-duty MT4 bull nose live revolving center
  • Designed for pipes, tubes, hollow shafts, and cored workpieces
  • Large support diameter range from 35mm to 128mm
  • Precision preloaded multi-bearing design
  • High radial and thrust load capacity
  • Smooth and accurate revolving action
  • Heat-treated hardened high carbon alloy steel construction
  • Grease nipples provided for easy maintenance
  • Excellent wear resistance and durability
  • Suitable for professional machining applications

Specifications

Specification Details
Morse Taper MT4
Capacity Range 35mm – 128mm
Head Diameter 128mm
Overall Length 193mm
Head Length 78mm
Bearing Type Precision Multi-Bearing
Material Hardened High Carbon Alloy Steel
Lubrication Grease Nipples Provided
Type Bull Nose Live Revolving Center

Applications

  • Pipe machining
  • Tube machining
  • Hollow shaft turning
  • Large diameter workpiece support
  • Cored hole applications
  • Heavy-duty lathe operations
  • Fabrication workshops
  • Industrial machining
  • Tool room applications
  • Production turning operations

Benefits

  • Provides stable support for hollow workpieces
  • Reduces vibration during machining
  • Improves turning accuracy and surface finish
  • Handles both radial and thrust loads efficiently
  • Long service life with hardened alloy steel construction

Suitable For

  • Engine lathes
  • Precision lathes
  • Tool room lathes
  • Industrial turning centers
  • Fabrication workshops
  • General machining operations

Package Includes

  • 1 × MT4 Bull Nose Live Revolving Center
