MT5 Revolving Tube Lathe Line Centre Bull Nose – Morse Taper 5 Pipe & Tube Centre 35–148mm UK STOCK
MT5 Revolving Tube Lathe Line Centre Bull Nose – Morse Taper 5 Pipe & Tube Centre 35–148mm UK STOCK
MT5 Revolving Tube Lathe Line Centre Bull Nose – Morse Taper 5 Pipe & Tube Centre 35–148mm UK STOCK
Tags: / / / / / / /

MT5 Revolving Tube Lathe Line Centre Bull Nose – Morse Taper 5 Pipe & Tube Centre 35–148mm UK STOCK

4.5 rating ( 2334 )
$199.00
$199.00

Tax included

Stock Availability

FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA   •   AVAILABLE IN USA   •   AVAILABLE IN UNITED KINGDOM   •   AVAILABLE IN GERMANY   •   AVAILABLE IN AUSTRALIA
Secured Payment
Description
Description
x

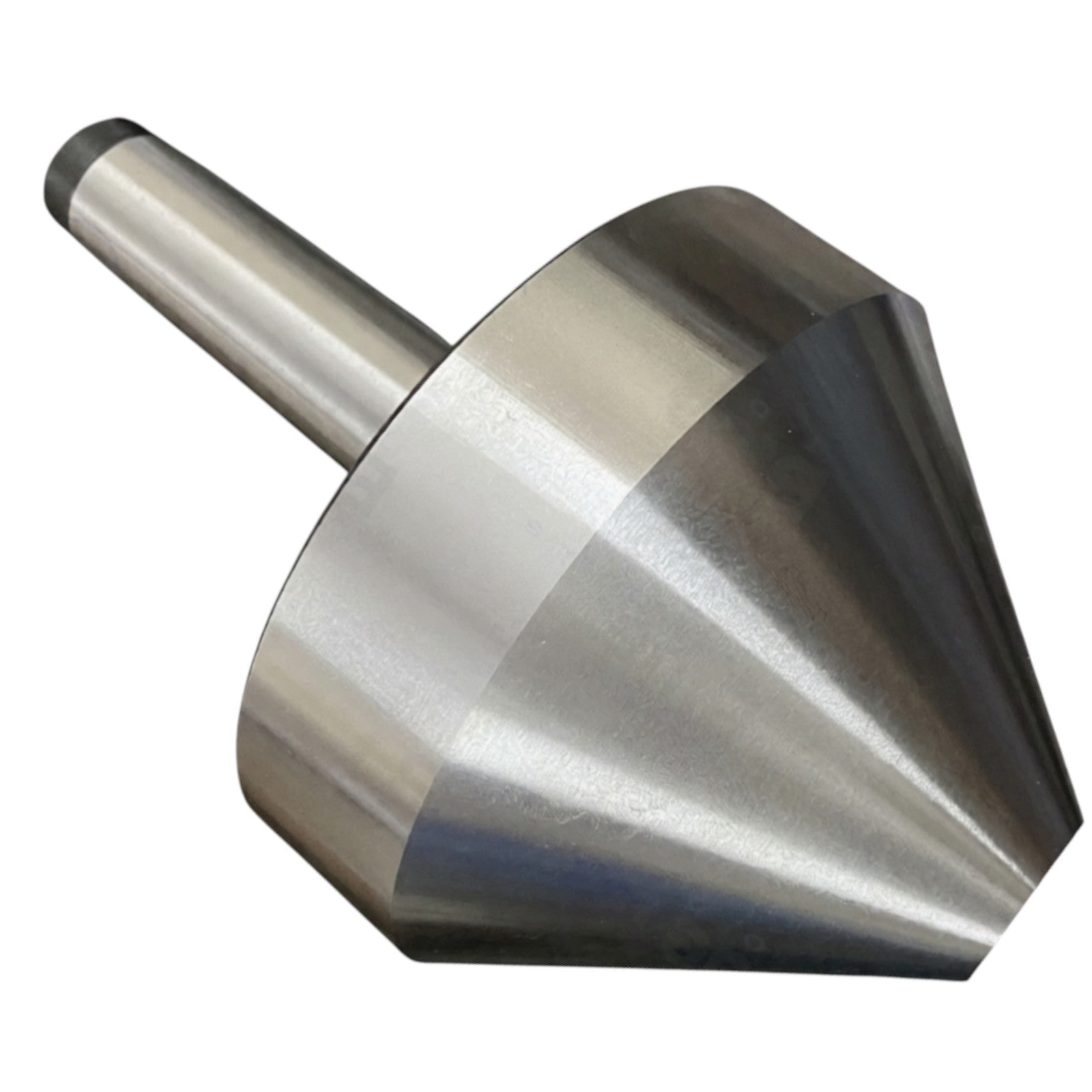

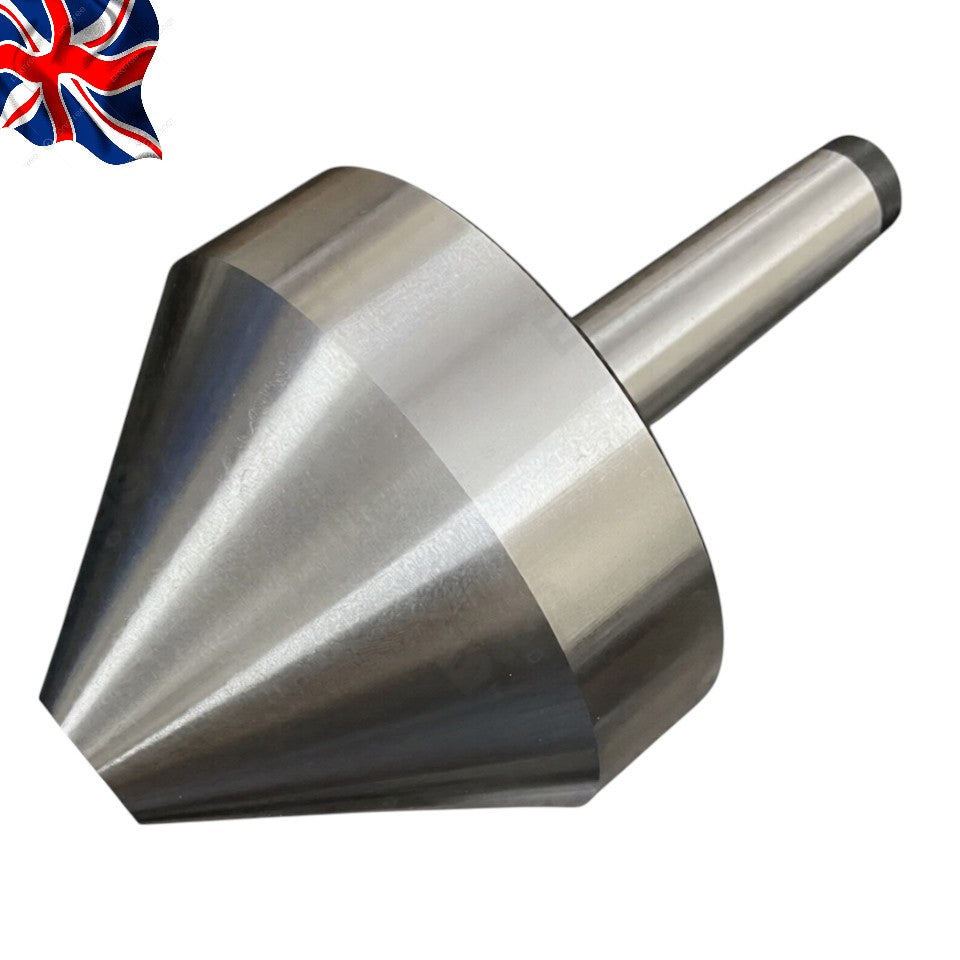

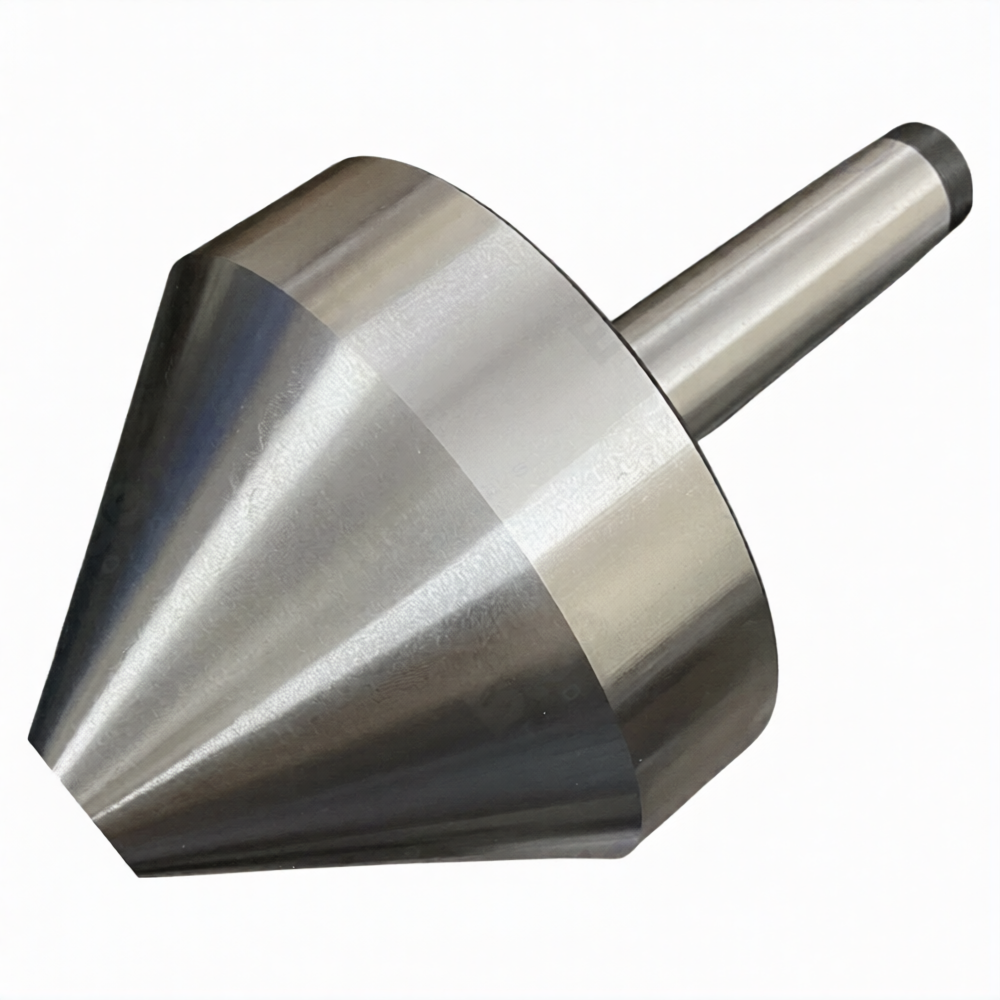

The MT5 Revolving Tube Lathe Line Centre Bull Nose is a heavy-duty precision lathe accessory designed specifically for holding pipes, tubes, hollow workpieces, large-diameter centres, and cored holes. Engineered for stability, accuracy, and smooth rotation, this centre is ideal for demanding tube and pipe machining operations on medium to large lathes.

🔧 Key Features

  • Designed for Pipe, Tube & Hollow Work Holding
    Special bull-nose profile supports pipe and tube work securely, making it ideal for hollow components, large-diameter centres, and cored holes during turning operations.

  • Wide Holding Capacity for Versatile Applications
    Supports workpiece diameters from 35 mm to 148 mm, allowing a single centre to handle a broad range of pipe and tube sizes.

  • Morse Taper MT5 for Heavy-Duty Lathes
    Precision-ground MT-5 Morse taper ensures a rigid, accurate fit in the lathe tailstock for stable machining under load.

  • Smooth & Accurate Revolving Action
    Equipped with preloaded, well-greased multi-bearing system to provide excellent thrust and radial load capacity, ensuring smooth rotation and reduced friction.

  • High-Strength Hardened Bull Nose Head
    Head manufactured from heat-treated, hardened high-carbon alloy steel for superior wear resistance and long service life.

  • High Hardness for Durability
    Bull nose head hardened to 55–60 HRC, ensuring resistance to deformation even under heavy cutting forces.

  • Easy Maintenance with Grease Nipples
    Grease nipples provided on the tail and body for easy regreasing. Use only high-quality bearing grease or oil to maintain optimal performance.

  • Precision Machined for Accuracy
    Accurately machined and balanced construction helps maintain concentricity and consistent support for improved surface finish.

📐 Technical Specifications

  • Type: Revolving Tube / Pipe Line Centre (Bull Nose)

  • Morse Taper: MT-5

  • Head Diameter: 147 mm

  • Total Length: 243 mm

  • Head Length: 84 mm

  • Holding Capacity: 35 mm to 148 mm

  • Head Material: Heat-treated high-carbon alloy steel

  • Head Hardness: 55–60 HRC

  • Bearing Type: Preloaded multi-bearing system

🎯 Ideal For

  • Pipe and tube turning operations

  • Hollow and cored workpieces

  • Heavy-duty lathe machining

  • Industrial workshops and fabrication units
