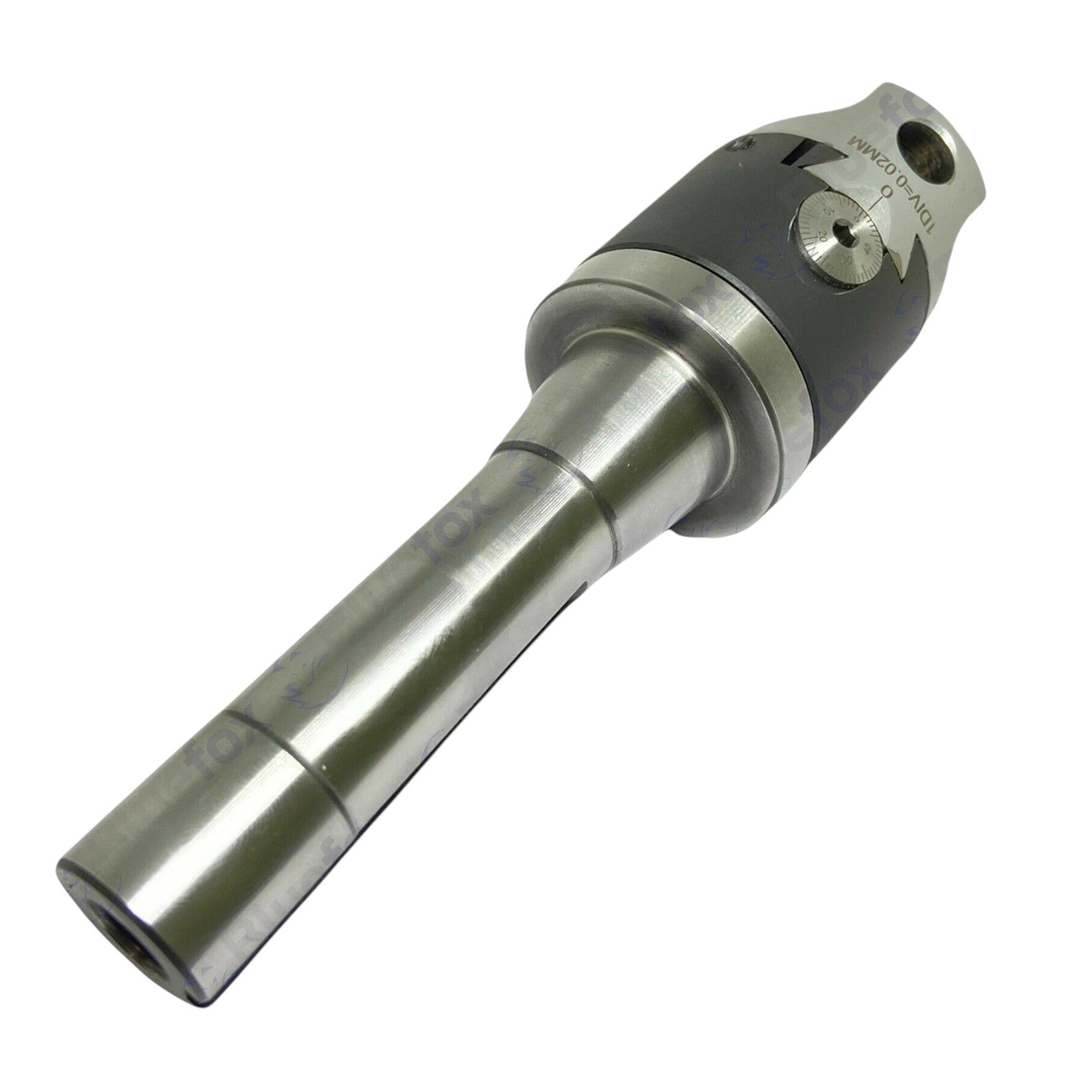

xPrecision 50mm R8 Boring Head Set for Milling Machines
The BLUEFOX R8 Boring Head Set is a professional-quality precision boring system designed for Bridgeport and other R8 spindle milling machines. Supplied complete with an R8 shank and a 9-piece 12mm brazed boring tool set, this package provides everything needed for accurate internal boring, hole enlargement, facing, and precision machining operations.
The boring head features a precision micro-adjustment mechanism that provides 0.02mm diameter feed per division, allowing accurate bore sizing and fine adjustments during machining. Manufactured from durable steel, the boring head offers excellent rigidity, accuracy, and long-term reliability for workshop, toolroom, production, and maintenance applications.
Suitable for use on milling machines, machining centers, and precision engineering equipment.
Key Features
- Complete R8 boring head kit
- Includes R8 shank and 9-piece boring tool set
- Precision micro-adjustment mechanism
- 0.02mm diameter adjustment per division
- Suitable for Bridgeport milling machines
- Heavy-duty steel construction
- High rigidity for accurate boring
- Multiple tool mounting positions
- Professional workshop quality
- Ideal for precision hole machining
Specifications
| Specification | Details |
|---|---|
| Boring Head Diameter | 50mm |
| Shank Type | R8 |
| Drawbar Thread | 7/16"-20 UNF |
| Boring Head Thread | 1-1/2" × 18 TPI |
| Tool Capacity | 12mm Diameter Tools |
| Vertical Tool Positions | 2 |
| Horizontal Tool Positions | 1 |
| Adjustment Rate | 0.02mm per Division (Diameter) |
| Construction | Steel |

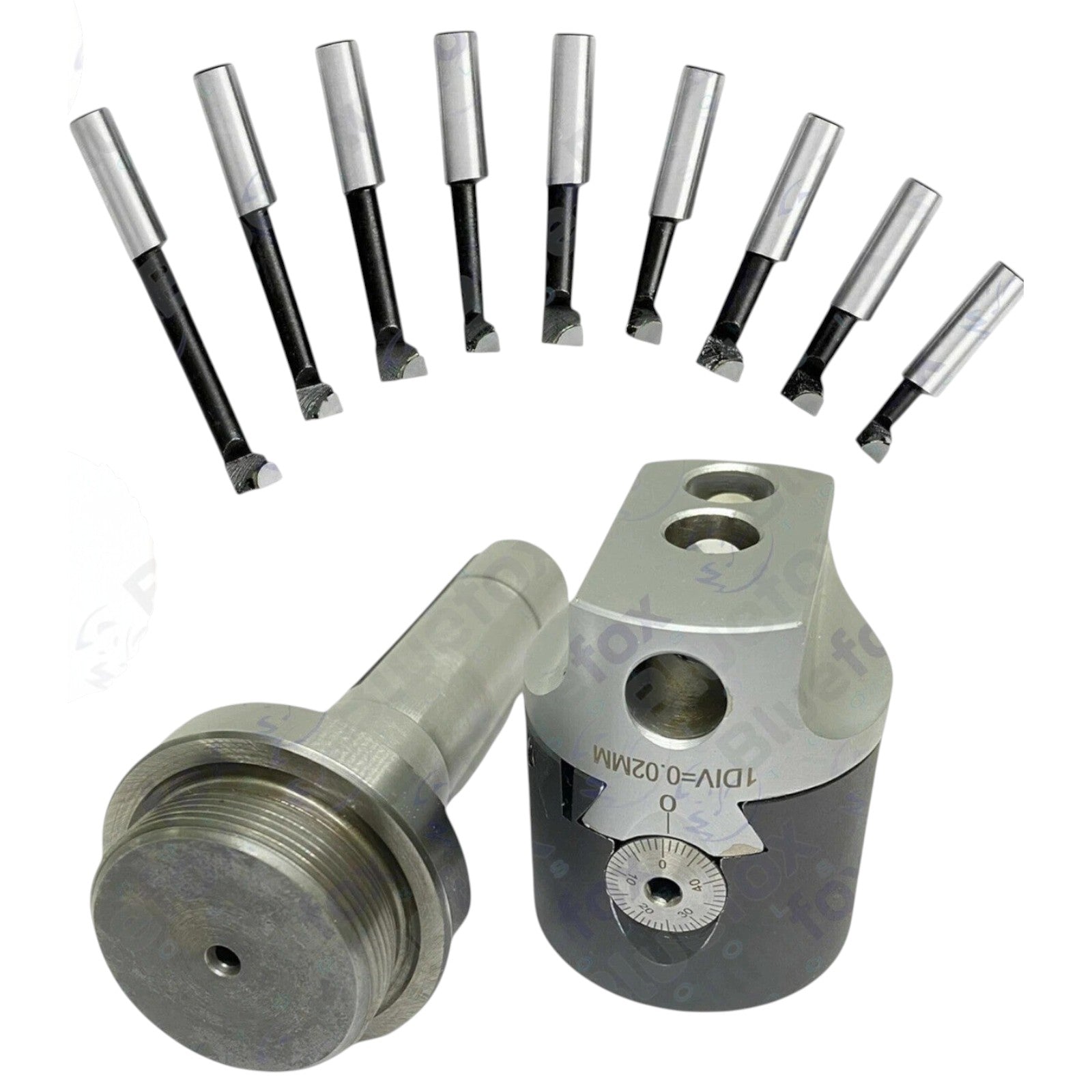

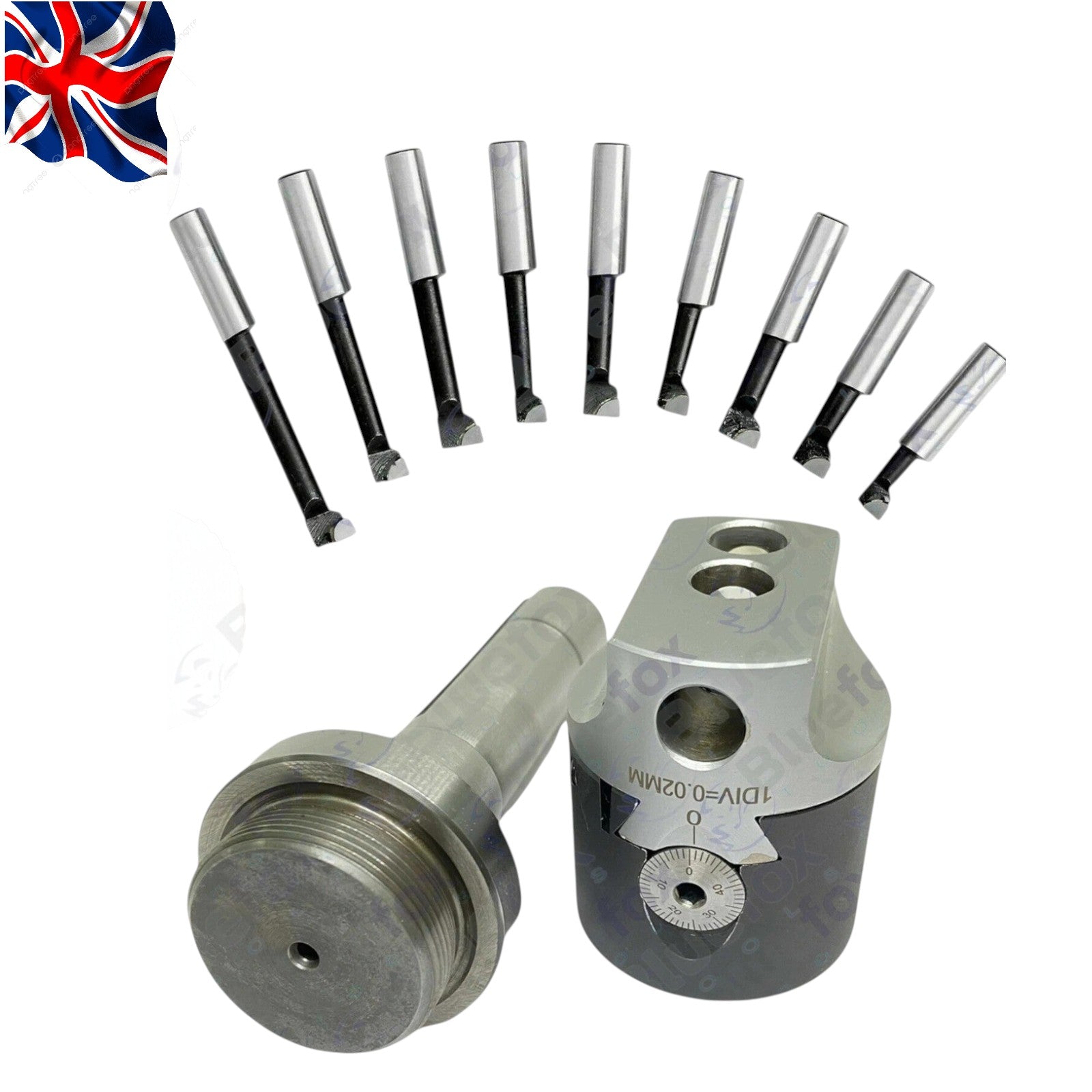

Included Components

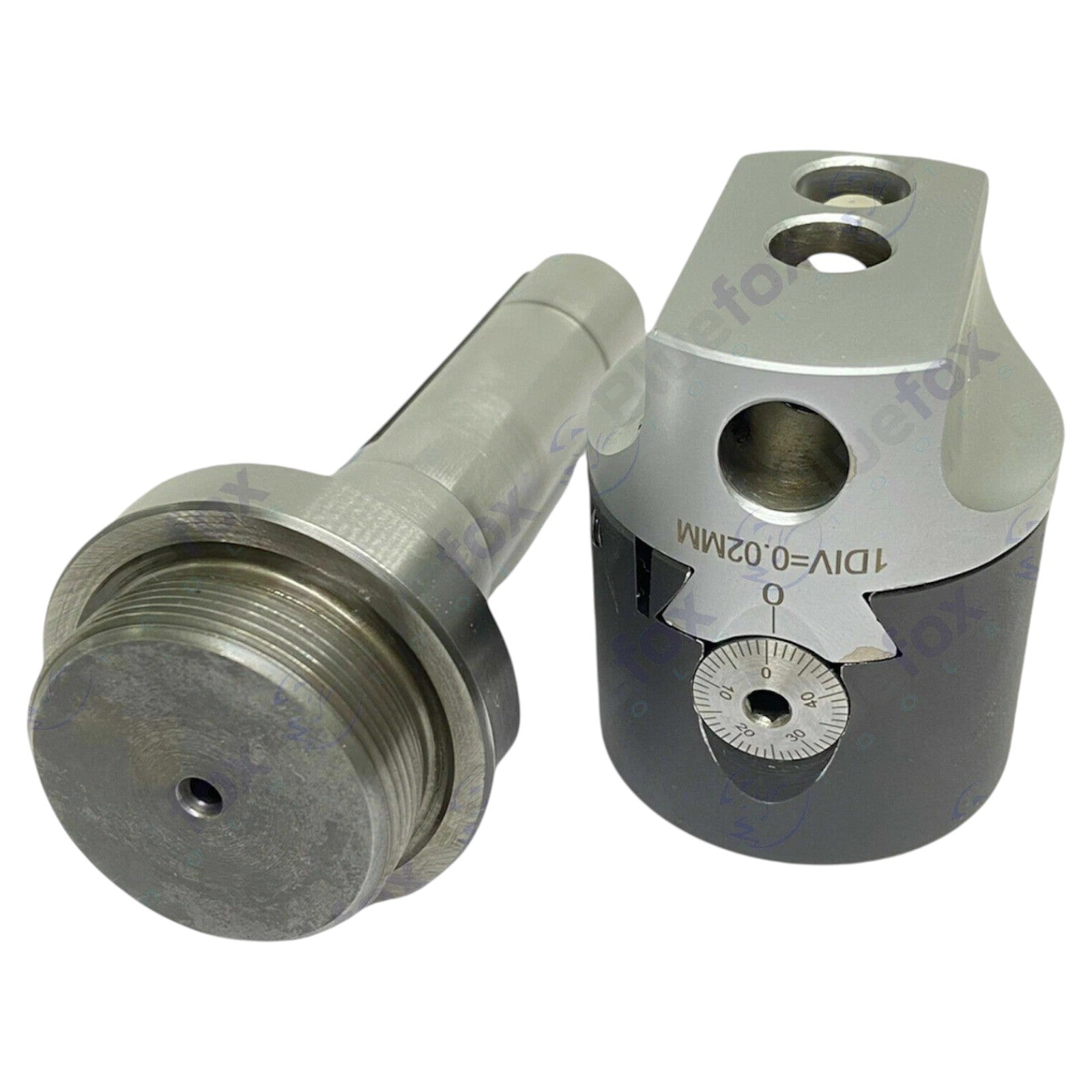

- 1 × 50mm Precision Boring Head

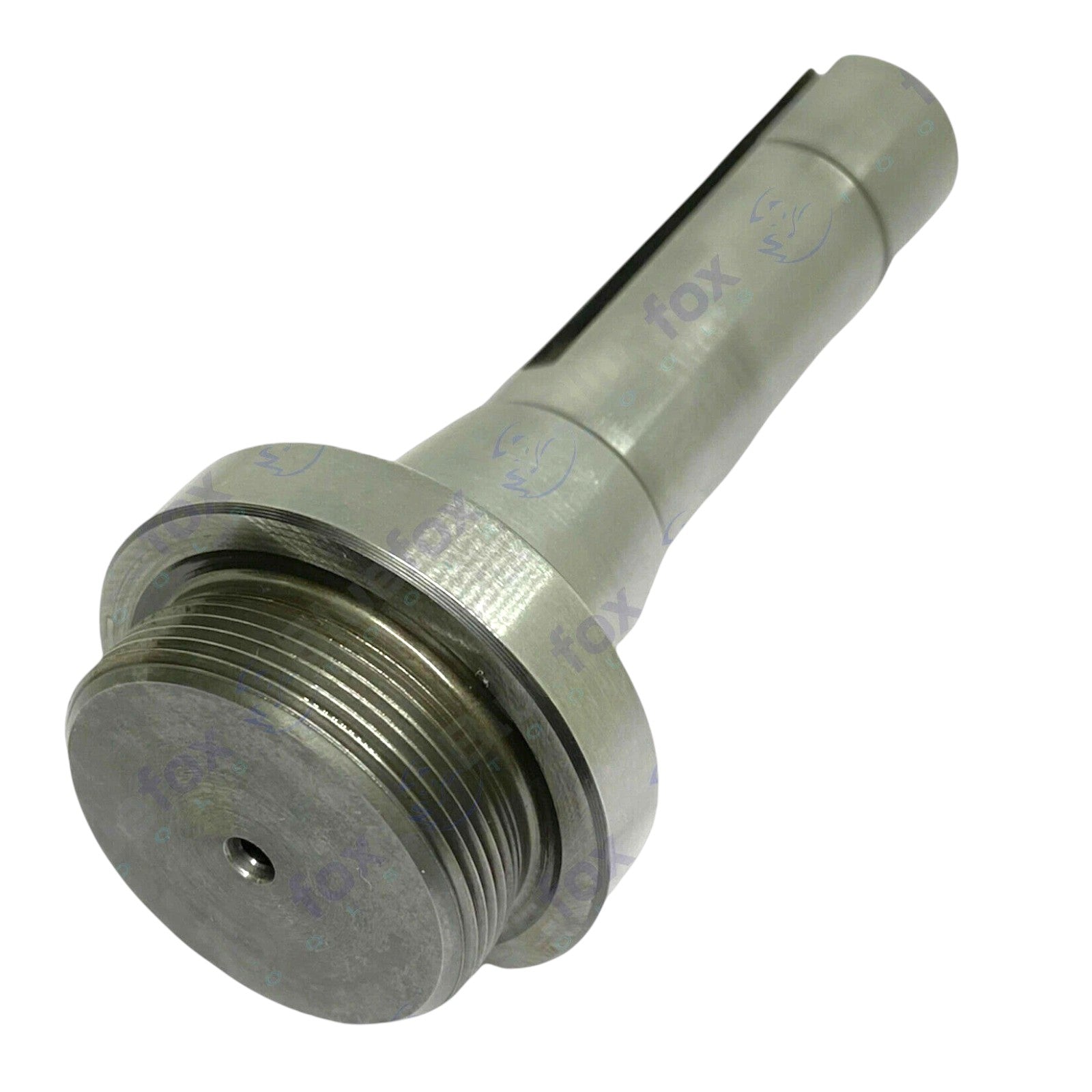

- 1 × R8 Arbor/Shank

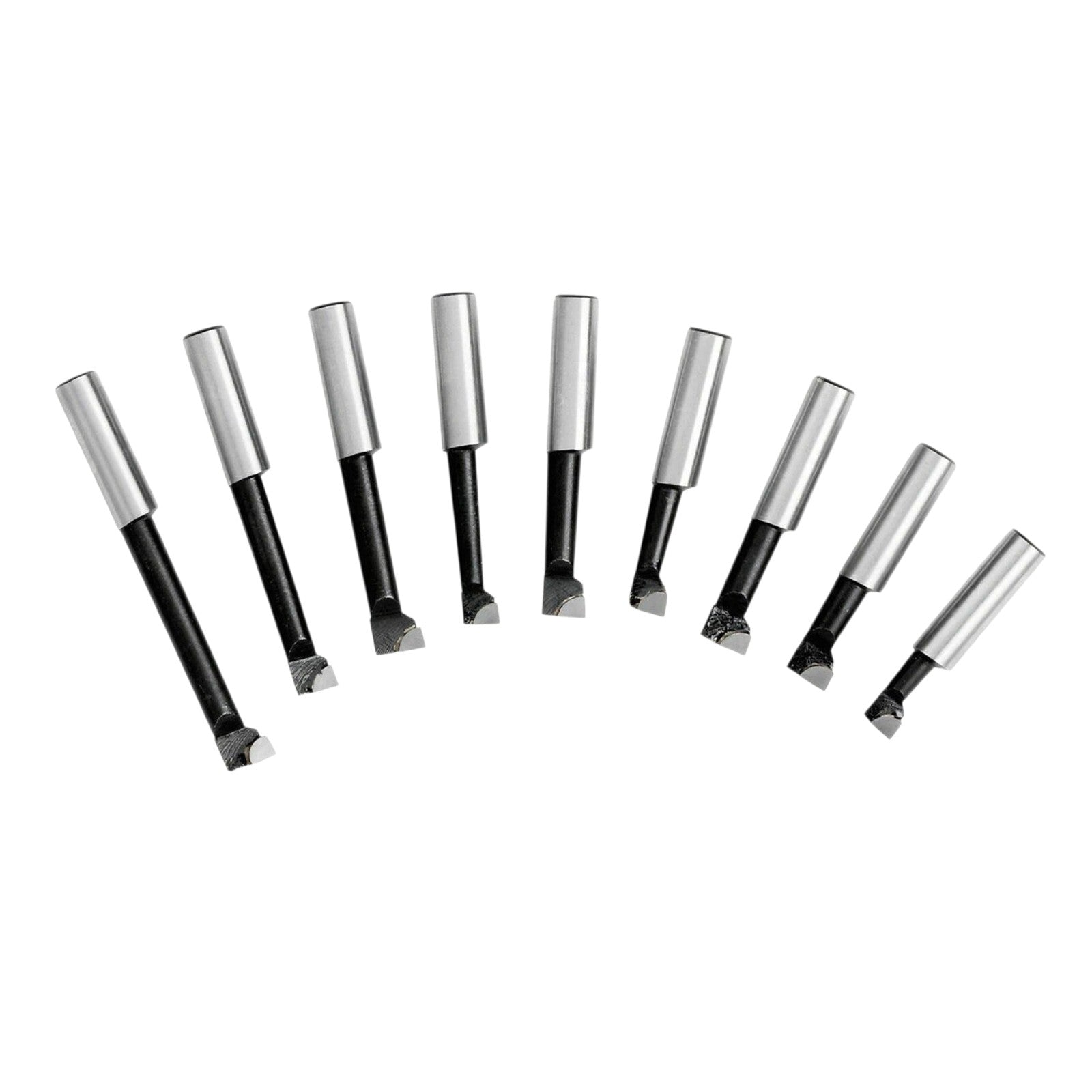

- 9 × Brazed Boring Tools (12mm Shank)
Applications
- Precision boring
- Hole enlargement
- Internal machining
- Counterboring
- Internal facing
- Toolmaking
- Precision engineering
- Machine repair
- Production machining
- Workshop milling operations
Benefits
Accurate Bore Sizing
Micro-adjustment mechanism enables precise control over bore diameter.
Complete Ready-to-Use Kit
Supplied with R8 shank and 9 boring tools for immediate use.
Excellent Rigidity
Heavy-duty steel construction reduces vibration and improves finish quality.
Multiple Tool Positions
Supports both vertical and horizontal tool mounting configurations.
Professional Performance
Suitable for toolrooms, machine shops, maintenance departments, and production environments.
Compatible Machines
Suitable for:
- Bridgeport Milling Machines
- R8 Spindle Milling Machines
- Vertical Milling Machines
- Toolroom Mills
- Machining Centres with R8 Adaptation
Suitable Materials
- Mild Steel
- Alloy Steel
- Cast Iron
- Aluminium
- Brass
- Bronze
- Copper
- Engineering Plastics
Package Includes
- 1 × 50mm Boring Head
- 1 × R8 Shank Arbor
- 9 × 12mm Brazed Boring Bars
