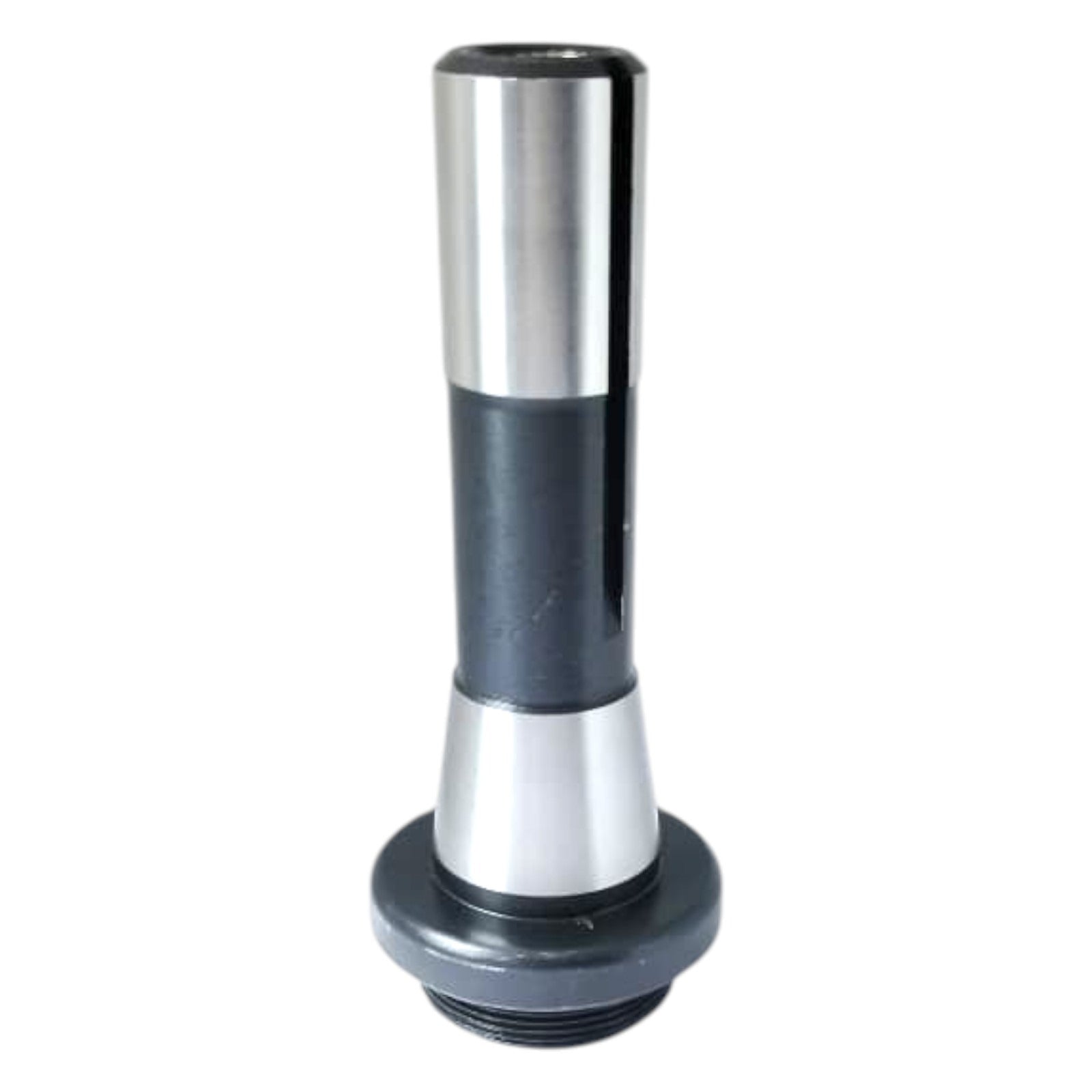

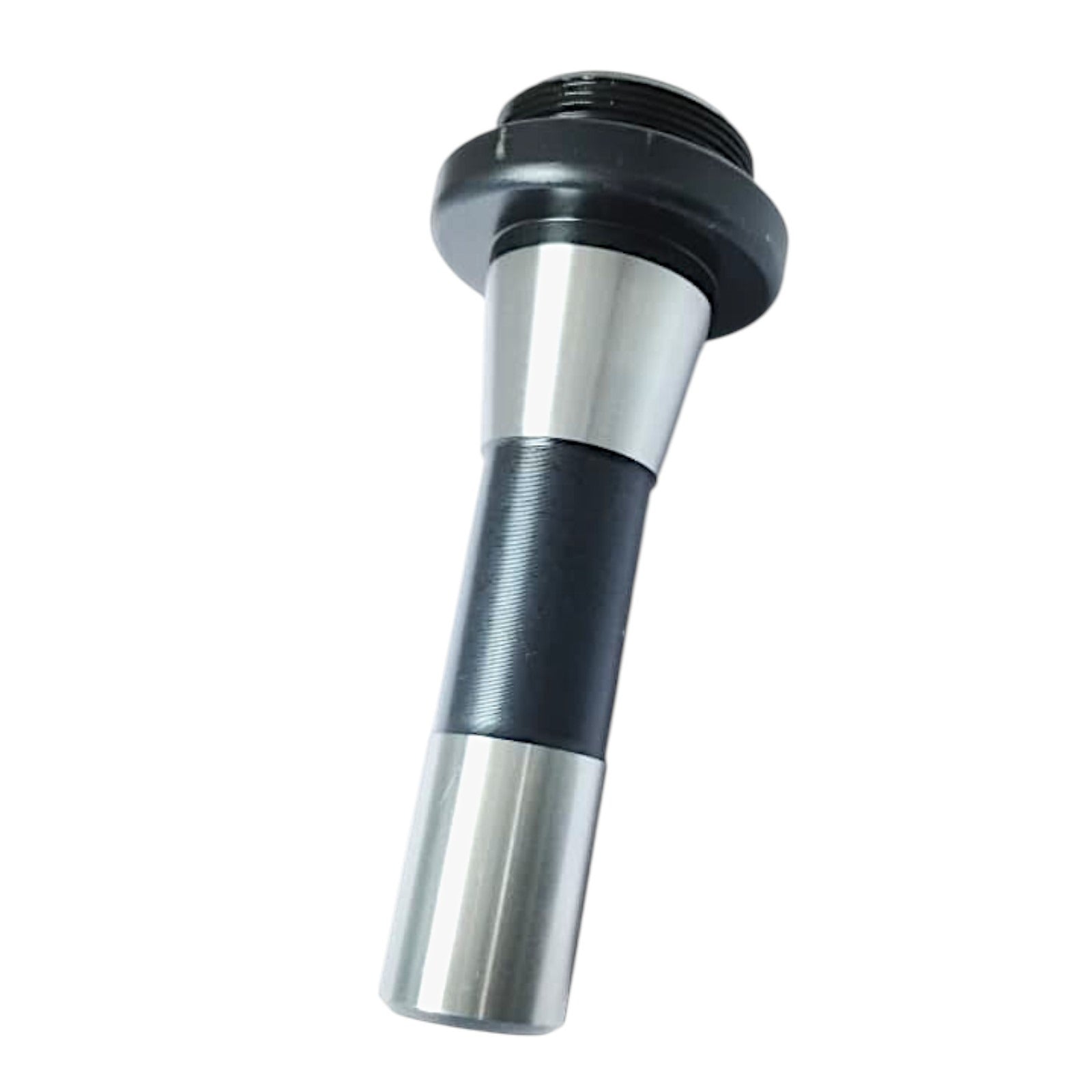

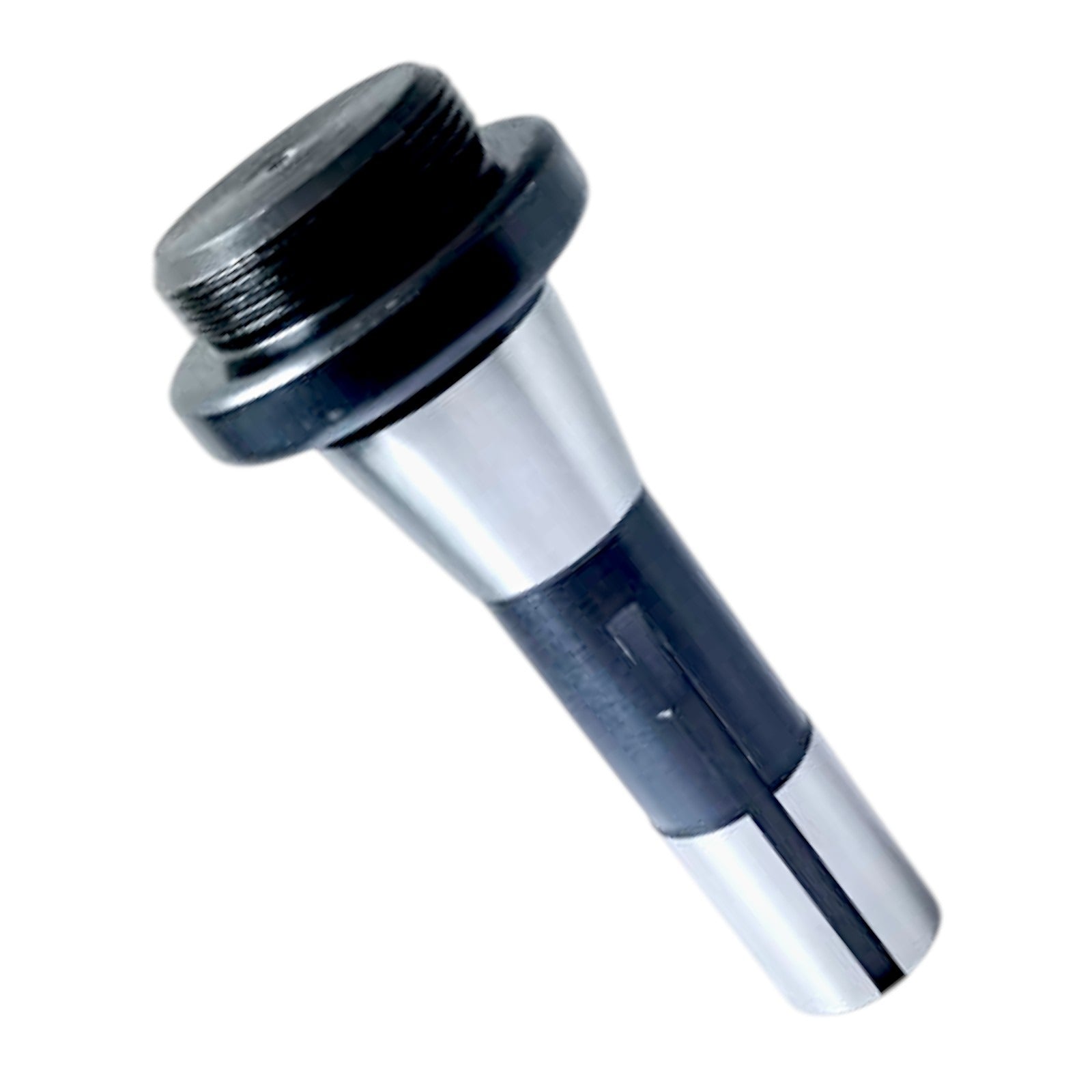

Precision R8 shank arbor with a 1-1/2"-18 TPI threaded nose and 7/16"-20 UNF drawbar, designed to securely mount 100 mm fly cutters and 50 mm boring heads on milling machines with R8 spindles. Engineered for stability, accuracy, and low runout in milling operations.
Key Features
Shank type: R8 shank — compatible with standard R8 milling machine spindles
Threaded nose: 1-1/2" × 18 TPI male thread
Drawbar thread: 7/16"-20 UNF (standard R8 drawbar)
Tool compatibility:
100 mm fly cutter with 1-1/2"-18 TPI thread
50 mm boring head with 1-1/2"-18 TPI internal thread
Secure mounting: Drawbar retention ensures stable, vibration-free operation
High accuracy: Precision-ground shank for excellent concentricity and reduced runout
Material: Heat-treated alloy steel for strength and durability
Surface finish: Ground and black-oxide/phosphate coated for corrosion resistance
Technical Specifications
Shank: R8
Nose thread: 1-1/2" × 18 TPI (male)
Drawbar thread: 7/16"-20 UNF
Typical runout: ≤ 0.03 mm
Recommended use: Milling, facing, and boring operations
Machine compatibility: Milling machines with R8 spindle
Compatibility & Application
This R8 arbor is specifically designed to fit:
100 mm fly cutters with 1-1/2"-18 TPI mounting thread
50 mm boring heads using 1-1/2"-18 TPI internal thread
The 7/16"-20 UNF drawbar provides positive retention in R8 spindles, ensuring secure tool holding during heavy cutting and finishing operations.
