Sliding Tailstock Die Holder Tool MT4 | 16–65mm Metric Button Die Holder Set for Lathe Threading
Sliding Tailstock Die Holder Tool MT4 | 16–65mm Metric Button Die Holder Set for Lathe Threading
Sliding Tailstock Die Holder Tool MT4 | 16–65mm Metric Button Die Holder Set for Lathe Threading
Sliding Tailstock Die Holder Tool MT4 | 16–65mm Metric Button Die Holder Set for Lathe Threading
Sliding Tailstock Die Holder Tool MT4 | 16–65mm Metric Button Die Holder Set for Lathe Threading
Sliding Tailstock Die Holder Tool MT4 | 16–65mm Metric Button Die Holder Set for Lathe Threading
Tags: / / / / / /

Sliding Tailstock Die Holder Tool MT4 | 16–65mm Metric Button Die Holder Set for Lathe Threading

4.5 rating ( 2334 )
$150.00
$150.00

Tax included

Stock Availability

FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA   •   AVAILABLE IN USA   •   AVAILABLE IN UNITED KINGDOM   •   AVAILABLE IN GERMANY   •   AVAILABLE IN AUSTRALIA
Secured Payment
Description
Description
x

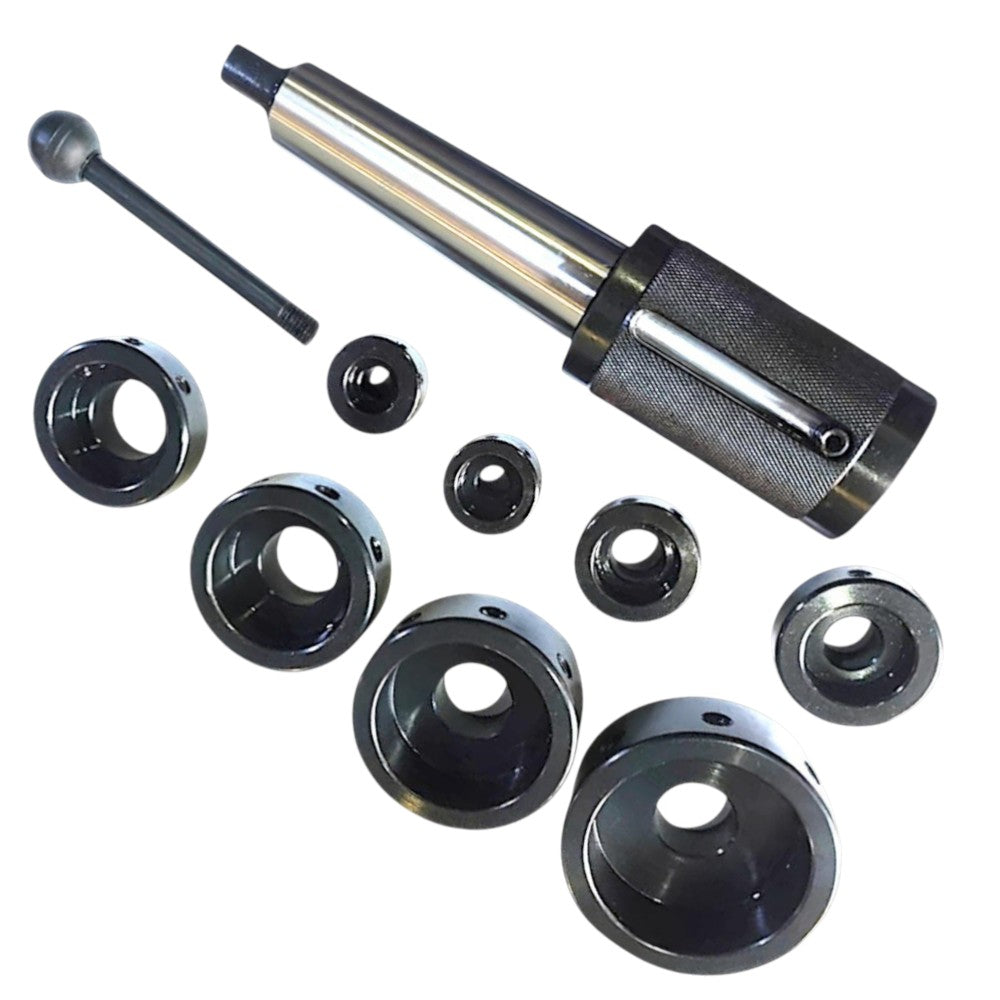

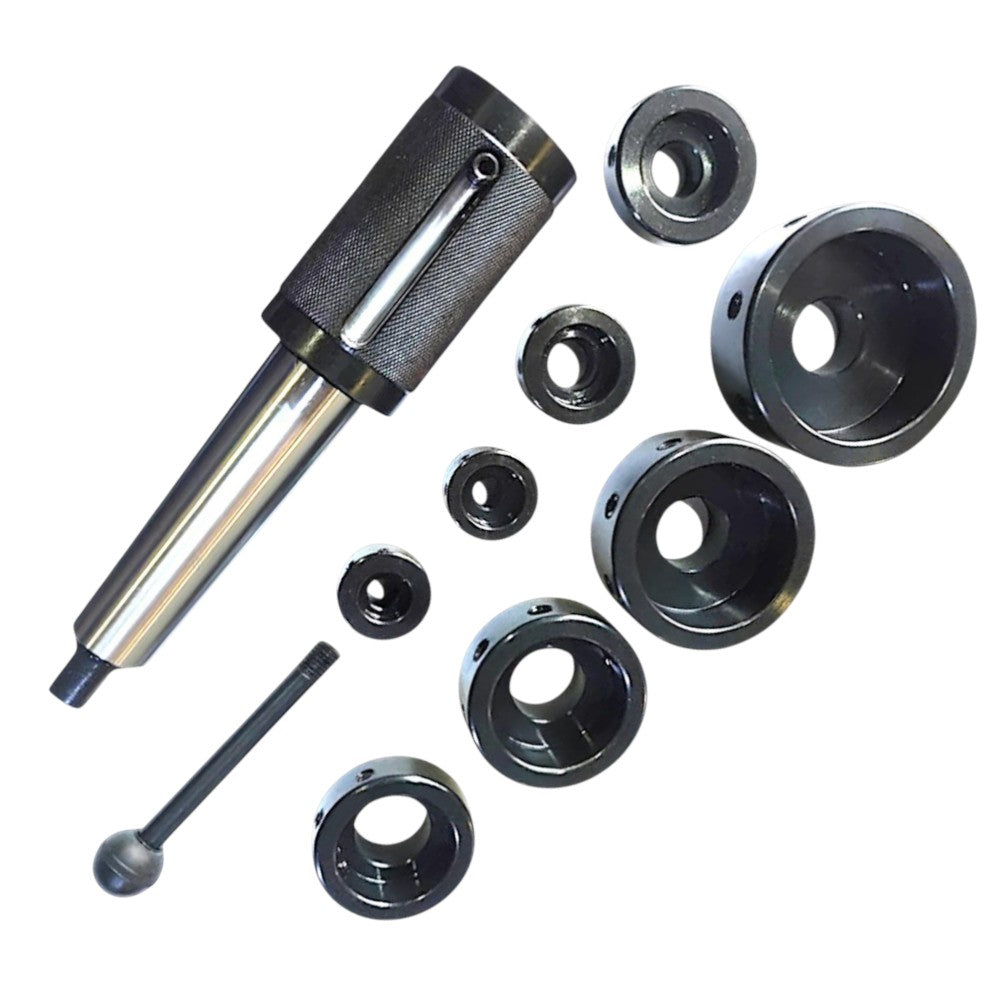

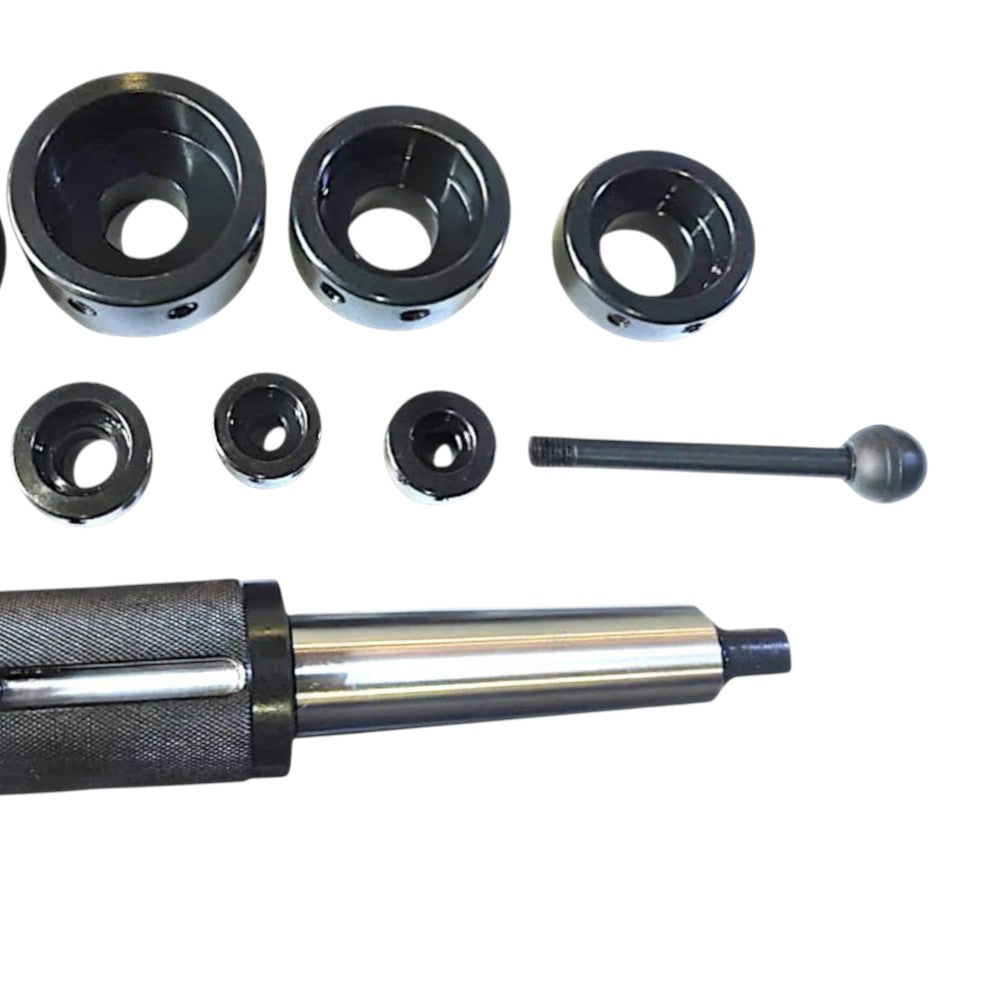

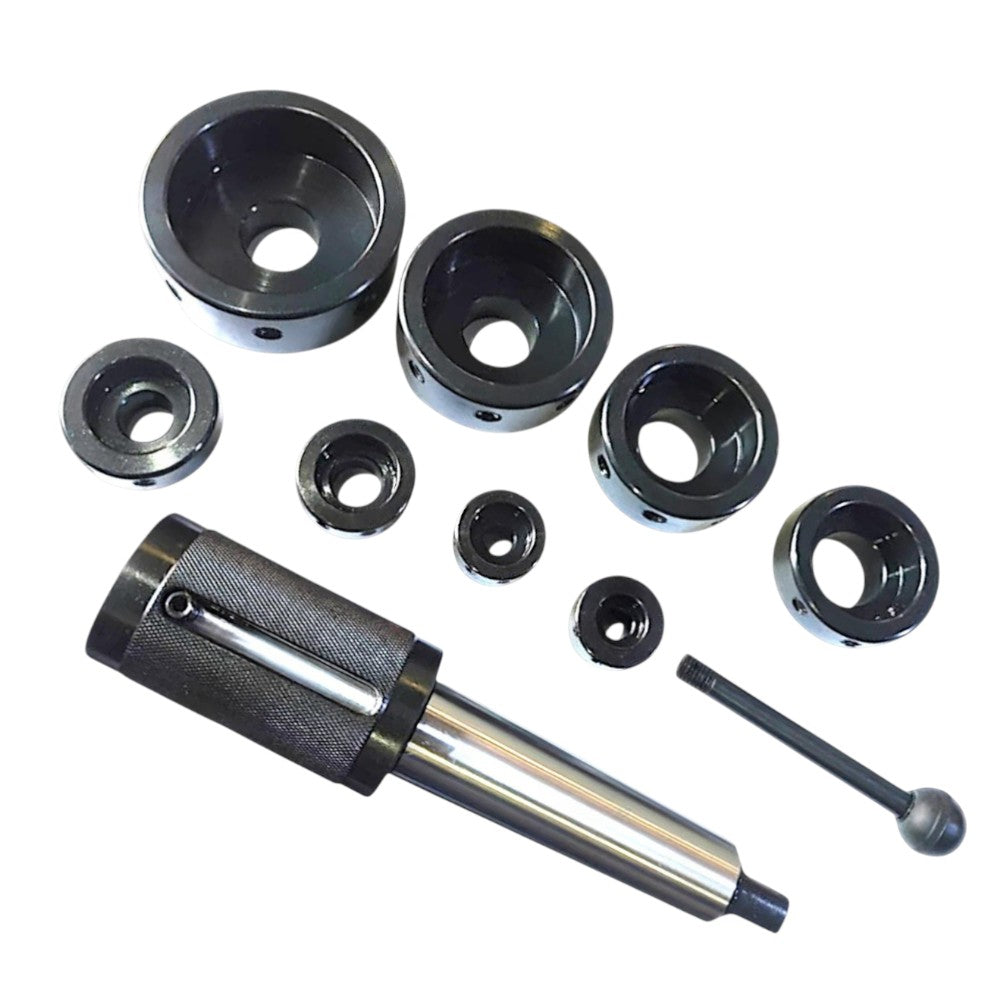

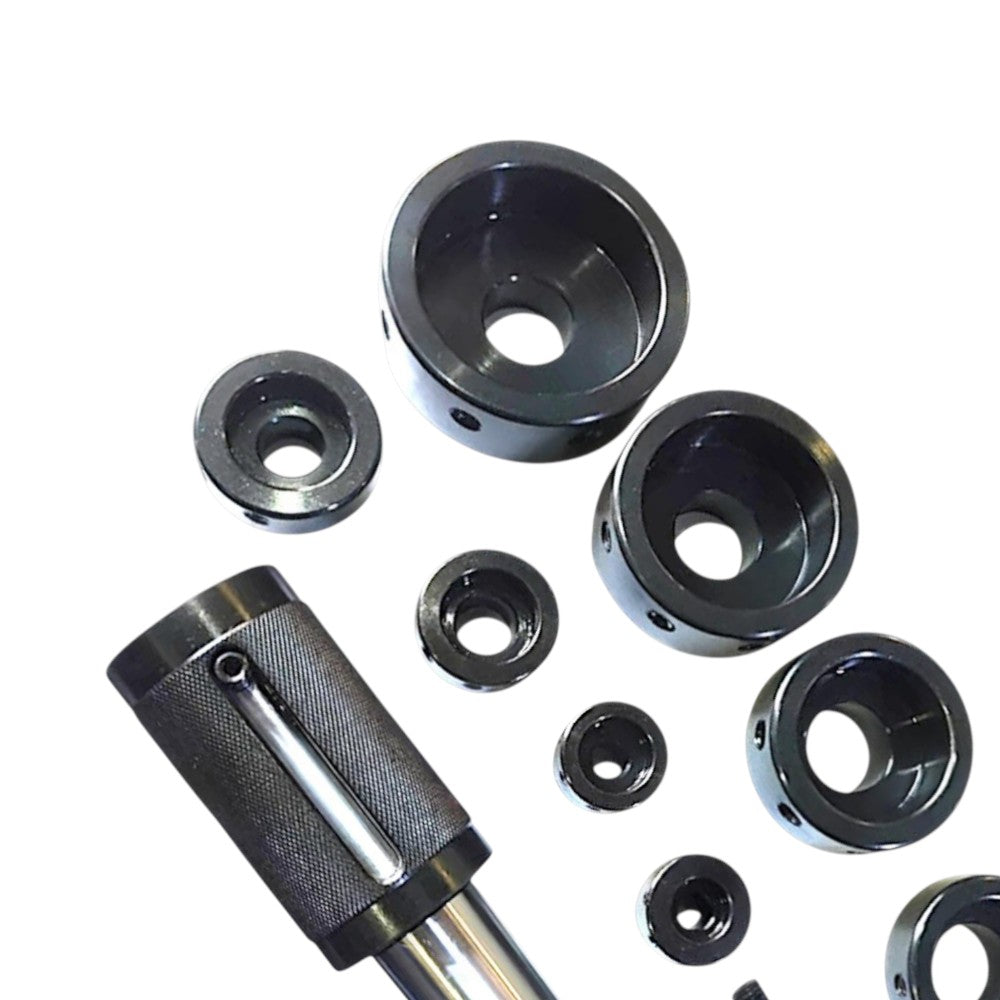

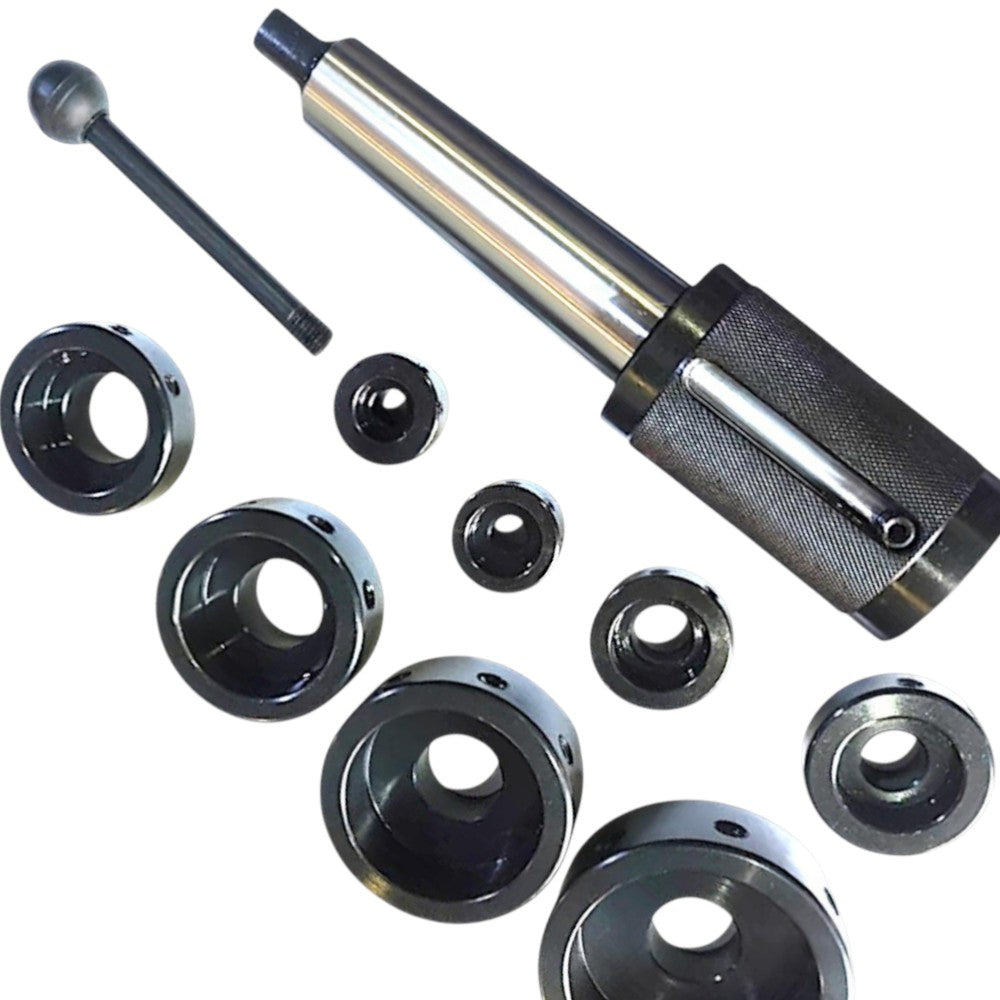

The MT4 Sliding Tailstock Die Holder Set is a precision lathe threading tool designed for cutting accurately aligned external metric threads using standard button dies. Built for smooth operation and reliable results, this tool is suitable for both professional machinists and serious hobby users.

Button dies are mounted in interchangeable die holders that fit securely into the front of a knurled sliding sleeve. The sleeve slides freely on a fixed arbor, which is mounted in the lathe tailstock using a Morse Taper 4 (MT4) shank. This construction ensures correct alignment with the workpiece, allowing the die to follow the thread naturally for smooth, controlled threading and reduced risk of cross-threading.

The die holder supports three modes of operation to suit different thread sizes and cutting conditions. Free-hand mode is ideal for smaller threads, while pegged sleeve and stop handle modes provide additional control for larger or tougher threading operations under power.

Supplied with eight metric die holders ranging from 16mm to 65mm, this versatile set covers a wide range of threading applications, making it an essential accessory for lathe workshops and machining environments.

Specifications

  • Shank Type: Morse Taper 4 (MT4)

  • Threading Type: External metric threading

  • Die Compatibility: Standard button dies

  • Included Die Holder Sizes: 16mm, 20mm, 25mm, 30mm, 38mm, 45mm, 55mm, 65mm

  • Application: Lathe threading, tailstock use
