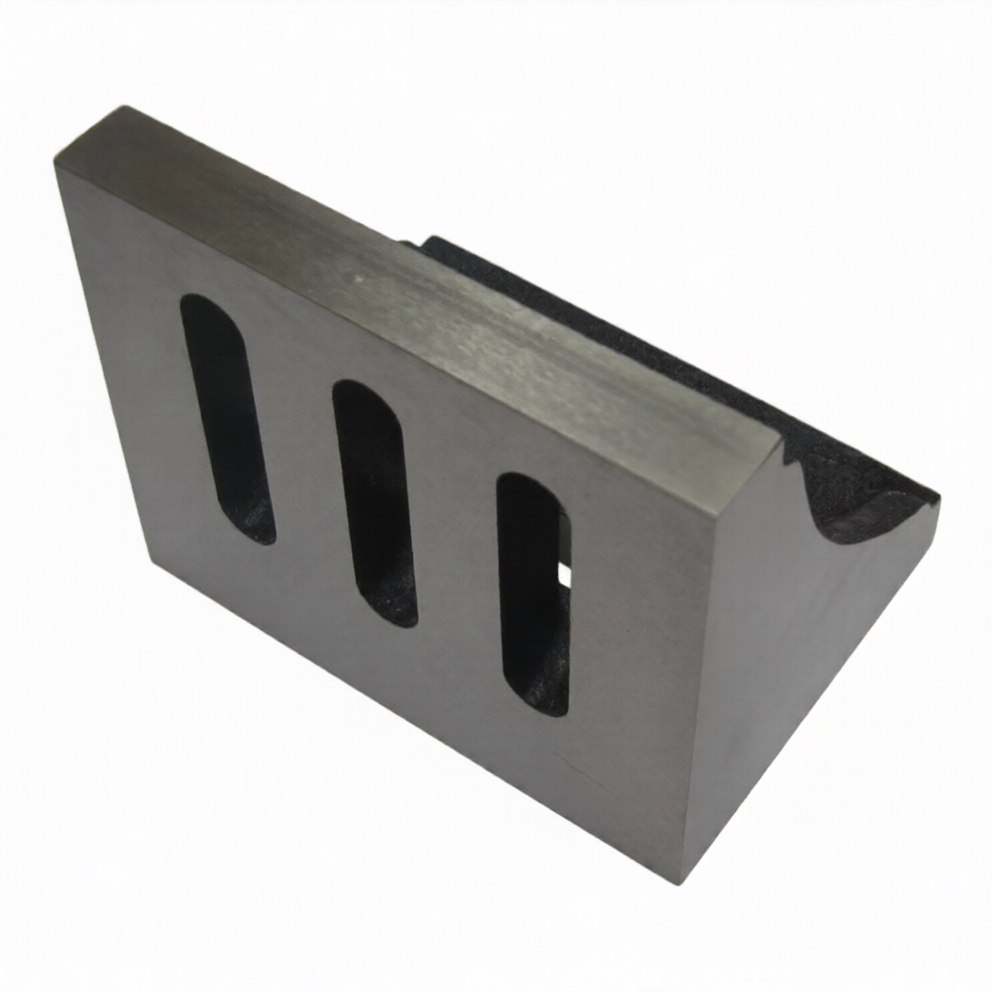

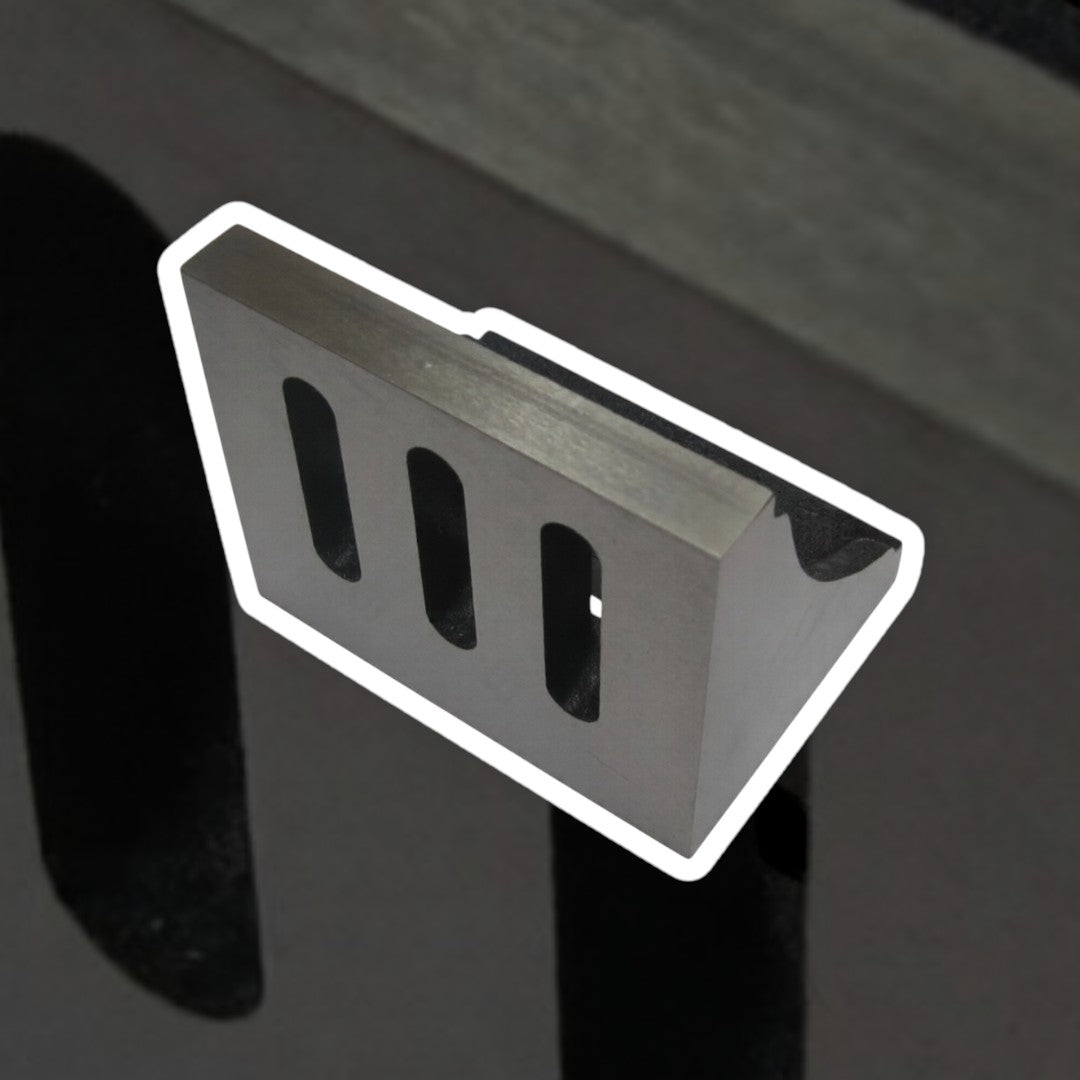

Slotted Angle Plate Cast Iron 110 x 89 x 75mm | Precision Ground Open End Angle Plate | 4 Slot Workholding Fixture for Milling & Machining
- $42.27
- $42.27
- Unit price
- per
Tax included
Stock Availability
FBB221, 29 WYSOCKI PL, HACKENSACK, NJ 07601-6804 US
Phone: +1 646 224 0700
Phone: +1 646 224 0700
662/8-A, Gali No 1, First Floor,
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Punjabi Basti, Anand Parbat
Phone: +91 8860055906
Orange Connex Fulfilment Centre – UK04
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Mill Road, Rugby, England
GB-CV21 1PR
Phone: +44 7747 770826
Orange Connex Fulfillment Center – DE04
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Bochumer Str. 119, Nordrhein-Westfalen
DE-44866 Bochum
Phone: +49 15563617045
Orange Connex Fulfilment Centre – AU03
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
Warehouse L, Building 5, 161 Manchester Rd
Auburn, New South Wales
AU-2144
Phone: +61 416 989 802
AVAILABLE IN INDIA •
AVAILABLE IN USA •
AVAILABLE IN UNITED KINGDOM •
AVAILABLE IN GERMANY •
AVAILABLE IN AUSTRALIA
Secured Payment
Description
xThe Slotted Angle Plate 110 x 89 x 75mm is a precision workholding fixture designed for accurate setup, positioning, inspection, and machining operations in engineering workshops and machine shops. Manufactured from high-grade stress-relieved cast iron, this angle plate provides exceptional rigidity, dimensional stability, and long-term accuracy.
The precision-ground surfaces ensure reliable squareness and alignment, making it ideal for holding workpieces at 90 degrees during milling, drilling, grinding, marking, inspection, and assembly operations. Featuring 4 precision-machined slots with a width of 9.5mm, the angle plate allows secure clamping and flexible fixture arrangements for various machining applications.
A valuable addition to any machine shop, tool room, inspection department, or fabrication workshop where precision and repeatability are essential.
✨ Key Features
✅ High-Grade Cast Iron Construction – Strong, rigid, and vibration-resistant.
✅ Stress-Relieved Material – Stabilized to prevent distortion and maintain accuracy.
✅ Precision Ground Surfaces – Ensures excellent squareness and alignment.
✅ Open-End Design – Provides easy access and flexible workpiece positioning.
✅ 4 Precision Machined Slots – Allows versatile clamping and fixture setups.
✅ Excellent Dimensional Stability – Suitable for precision machining operations.
✅ Professional Workshop Quality – Ideal for machine shops and engineering applications.
✅ Long Service Life – Durable cast iron construction designed for continuous use.
📏 Specifications
| Feature | Specification |
|---|---|
| Product Type | Slotted Angle Plate |
| Material | High-Grade Cast Iron |
| Construction | Stress Relieved |

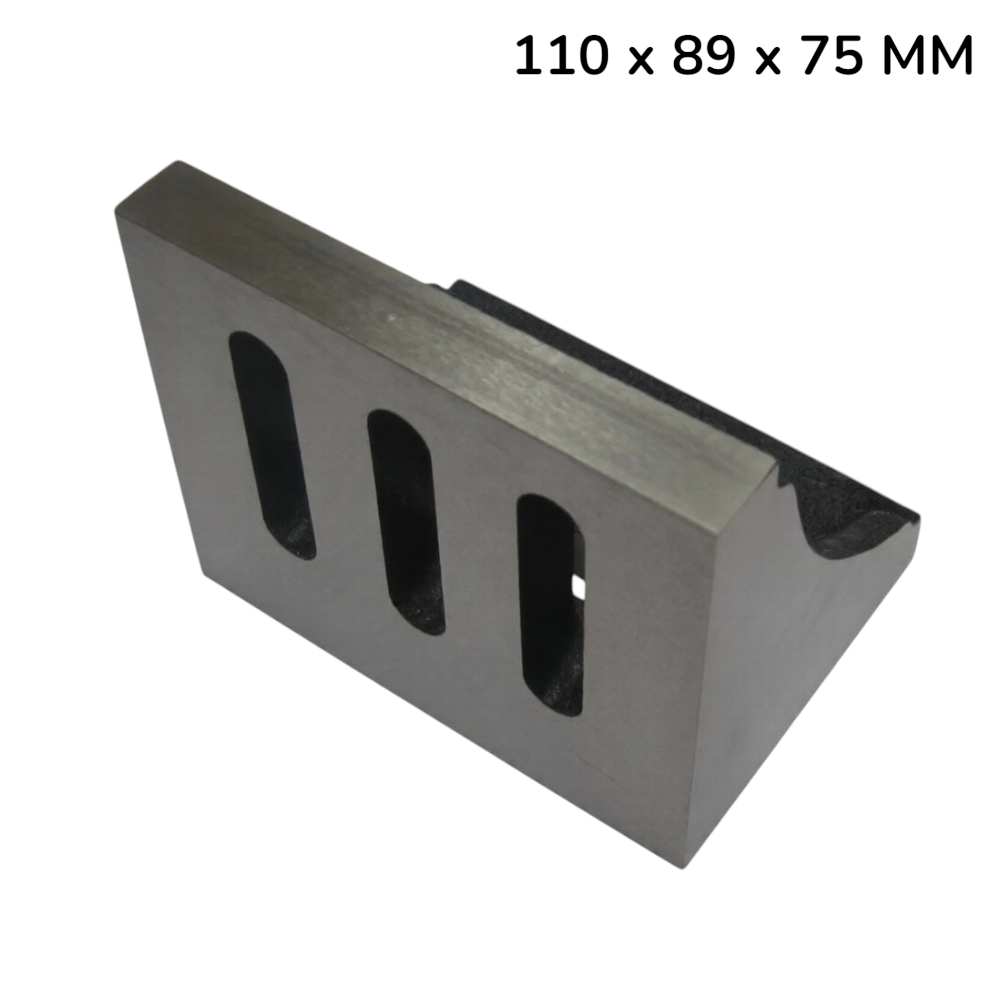

| Dimensions | 110mm × 89mm × 75mm |
| Slot Quantity | 4 Slots |
| Slot Width | 9.5mm |
| Surface Finish | Precision Ground |
| Design | Open End |
| Application | Workholding & Fixturing |
🛠️ Applications
🔹 Milling Machine Setups
🔹 Drilling Operations
🔹 Surface Grinding
🔹 Precision Inspection
🔹 Layout & Marking
🔹 Workpiece Alignment
🔹 Engineering Measurement
🔹 Assembly Fixtures
🔹 Tool Room Applications
🔹 Machine Shop Work
🔹 Fabrication Projects
🔹 Metalworking Operations
📦 Package Contents
- 1 x Slotted Angle Plate Cast Iron
- Precision Ground & Ready for Use
