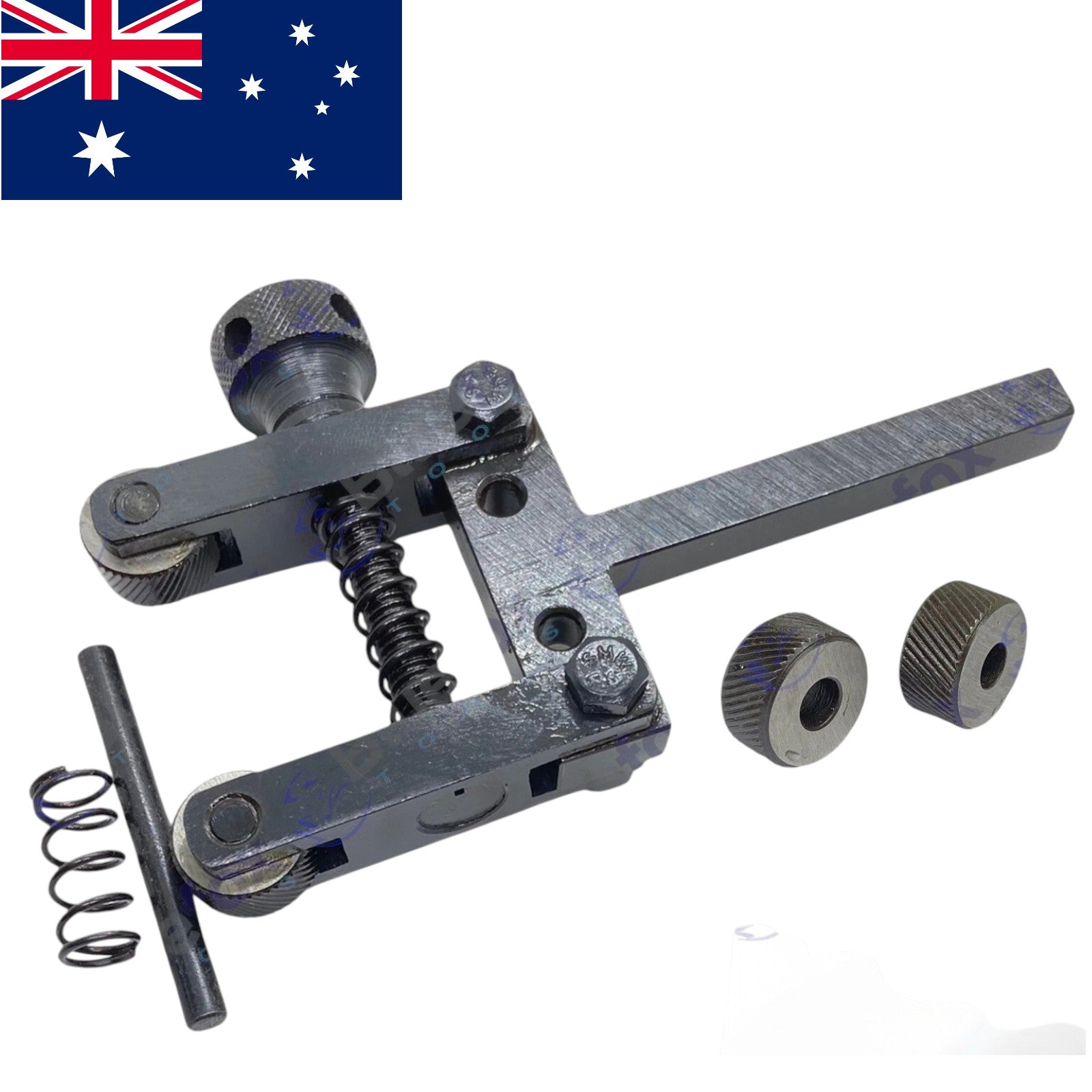

The Spring Loaded Clamp Type Knurling Tool is engineered for smooth, controlled knurling operations on lathes while minimising stress on the workpiece and machine. Featuring an adjustable spring-loaded head and clamp-style arms, this tool allows both knurls to contact the workpiece simultaneously from opposite sides, delivering clean, consistent knurl patterns with reduced cutting force.

With a maximum capacity of 2" (50mm), the clamp arms can be repositioned to suit different diameters, making the tool versatile for a wide range of turning applications. The 10mm shank ensures compatibility with many standard lathe tool posts. Supplied with one extra pair of knurls and a spare spring to adjust clamping pressure, this knurling tool offers flexibility, durability, and professional performance.

Note: Not suitable for CJ18A lathes in standard configuration due to cross-slide limitations. Operation may be possible with user modifications.

Key Features

  • Spring-loaded clamp type knurling tool for lathes
  • Maximum knurling capacity: 2" (50mm)
  • Clamp arms adjustable to increase or reduce working capacity
  • Opposing knurl contact reduces force on workpiece and spindle
  • Shank size: 10mm (approx. 3/8")
  • Knurl size: 3/4" x 3/8" x 1/4"
  • Includes one extra pair of spare knurls
  • Supplied with spare spring to reduce clamping capacity
  • Designed for smooth operation and consistent knurling results
