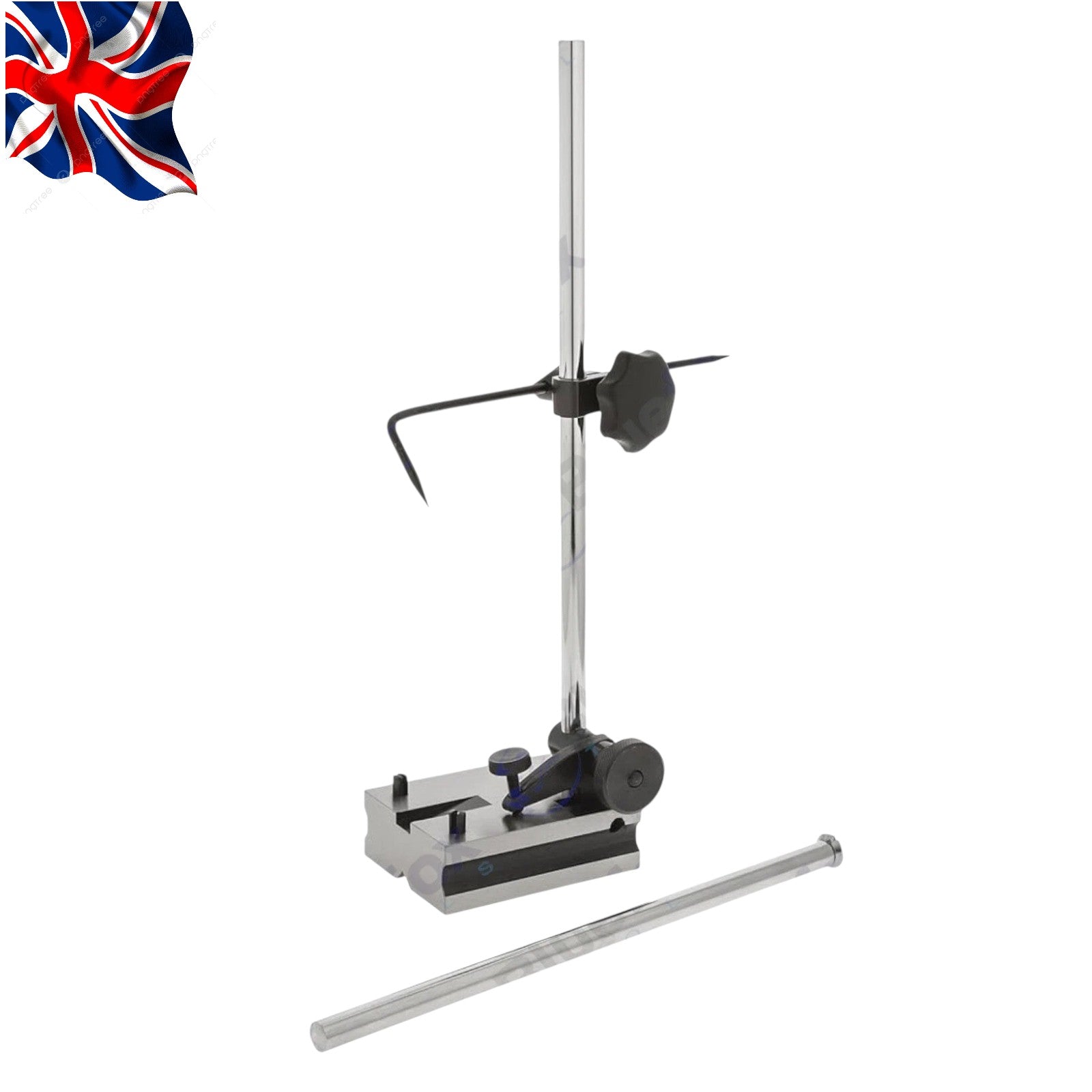

Universal Surface Gauge & Scribing Block for Precision Marking

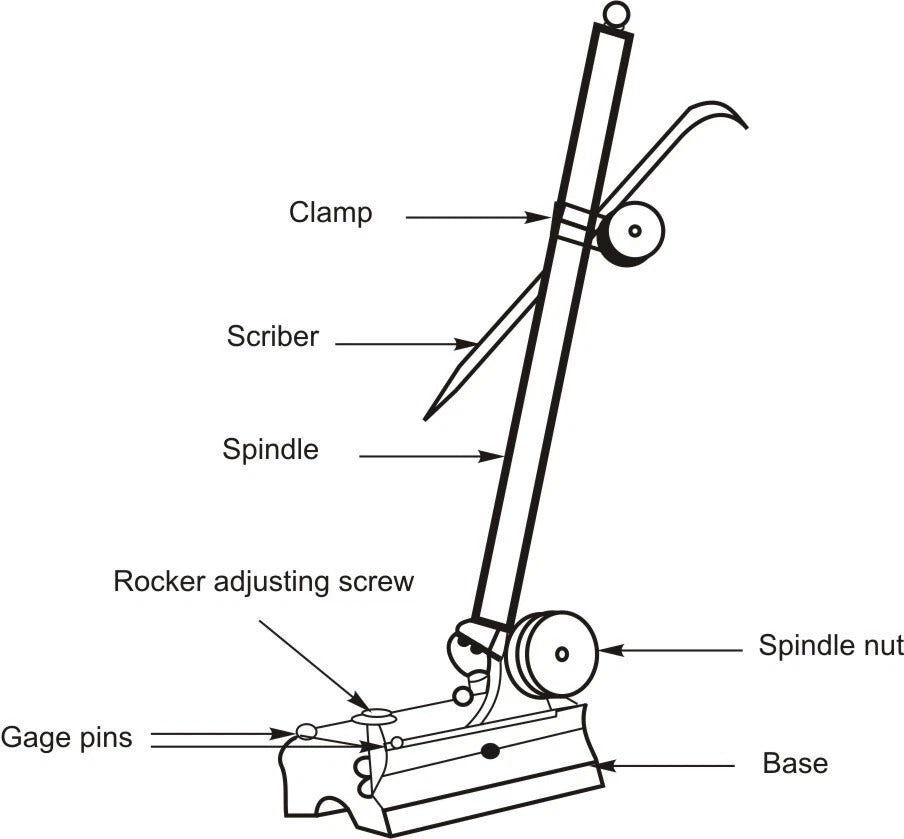

This Engineers Universal Scribing Block / Surface Gauge is a versatile marking and layout tool designed for accurate scribing, height setting, depth measurement, and inspection work in engineering workshops, toolrooms, and machine shops.

Featuring a hardened and ground V-groove base, the gauge can be used on both flat and cylindrical workpieces. The adjustable spindle can be positioned at virtually any angle, above or below the base level, making it ideal for a wide range of marking-out and measuring applications.

Supplied with 9" and 12" spindles, providing increased flexibility for different workshop tasks.

Key Features

  • Universal engineers surface gauge
  • Precision scribing block and marking tool
  • Includes 9" and 12" spindles
  • Adjustable spindle positioning
  • Spindle can be set above or below base level
  • Hardened and ground V-groove base
  • Suitable for cylindrical and flat workpieces

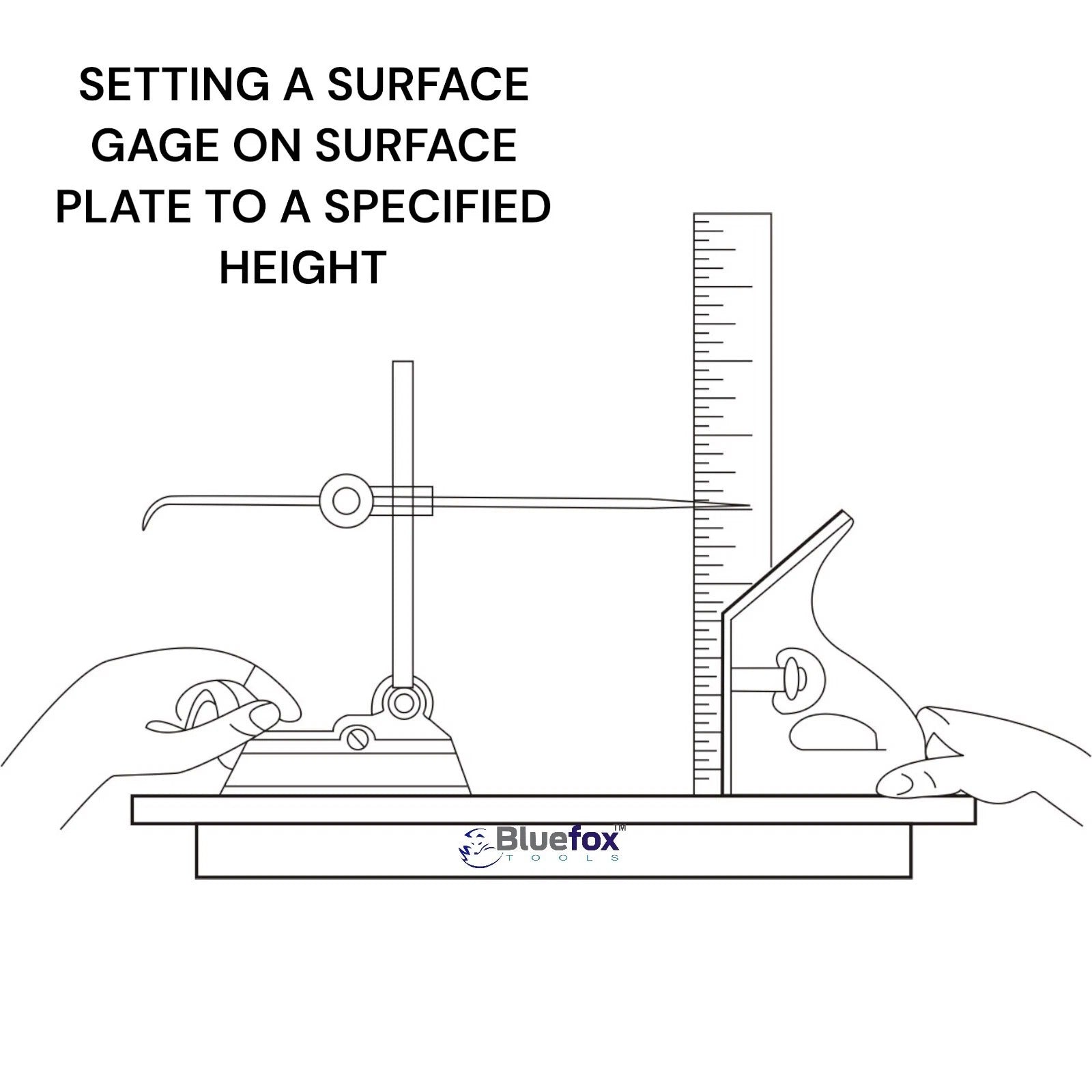

  • Functions as height gauge and depth gauge
  • Workshop and toolroom quality
  • Durable cast iron base construction

Specifications

Specification Details
Base Size 3-1/8" x 2-1/2" x 1"
Base Size Metric 82mm x 63mm x 25mm
Spindle Lengths 9" & 12"
Spindle Lengths Metric 225mm & 300mm
Spindle Diameter 3/8"
Spindle Diameter Metric 9.5mm
Base Type Hardened & Ground V-Groove

Applications

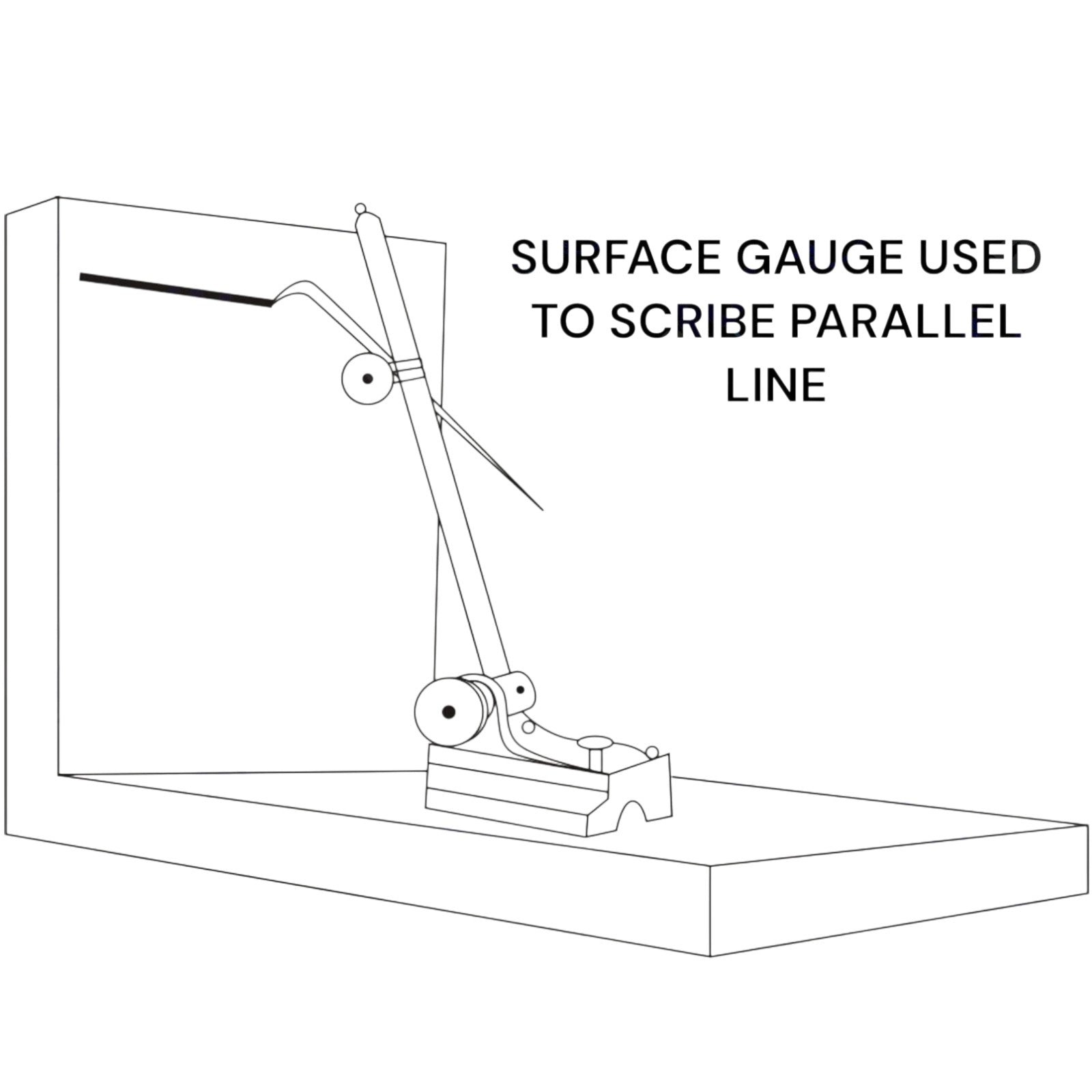

  • Precision marking out
  • Surface plate work
  • Engineering inspection
  • Height measurement
  • Depth measurement
  • Layout work
  • Toolroom applications
  • Workshop engineering
  • Machining setup
  • Cylindrical work marking

Benefits

Multi-Purpose Design

Can be used as a scribing block, height gauge, and depth gauge.

Adjustable Spindle

Allows positioning at various angles for maximum versatility.

V-Groove Base

Provides stable support when working with round or cylindrical components.

Precision Marking

Ideal for accurate layout and inspection work.

Workshop Essential

Suitable for machinists, engineers, toolmakers, and model engineers.

Package Includes

  • 1 × Universal Surface Gauge Base
  • 1 × 9" Spindle (225mm)
  • 1 × 12" Spindle (300mm)
