Description

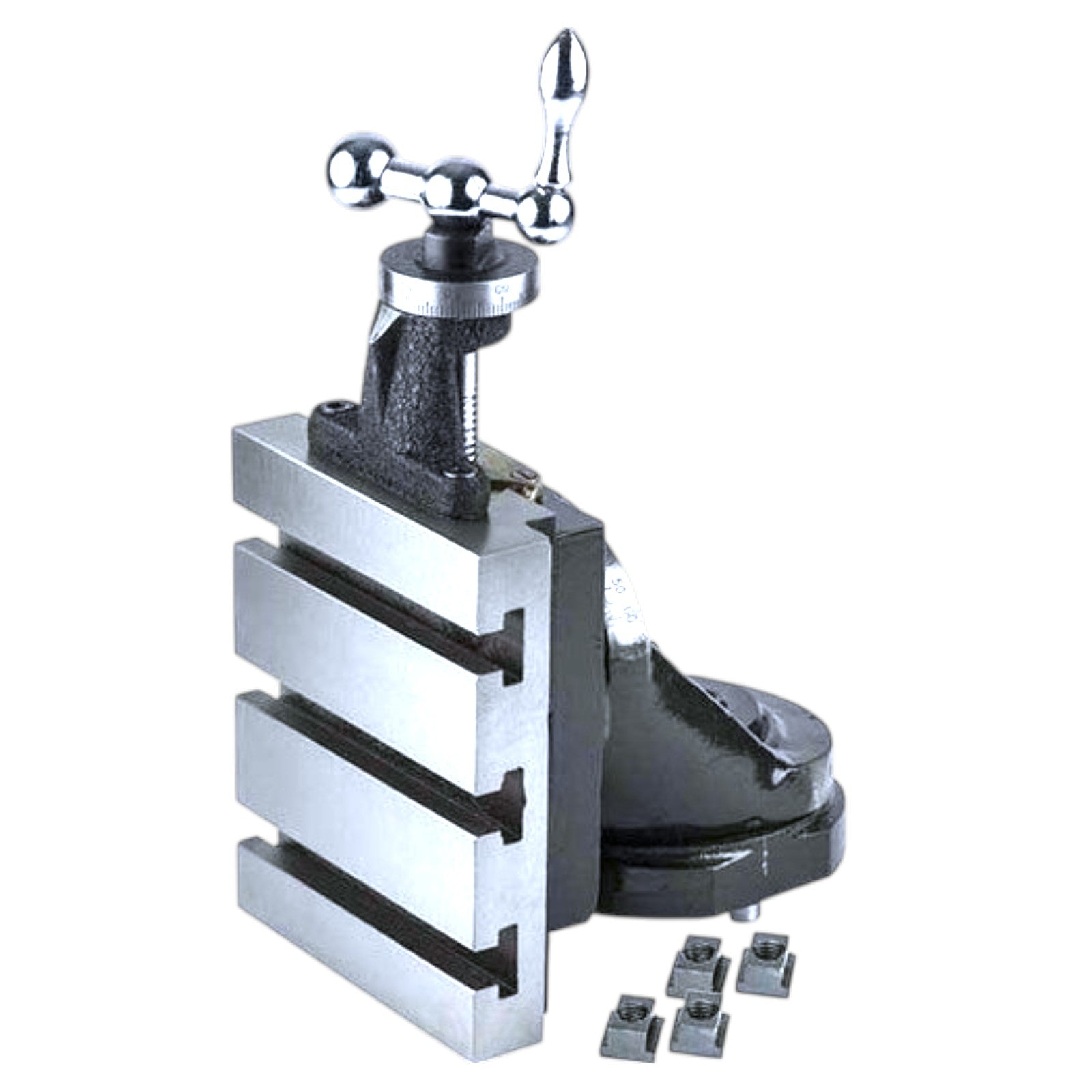

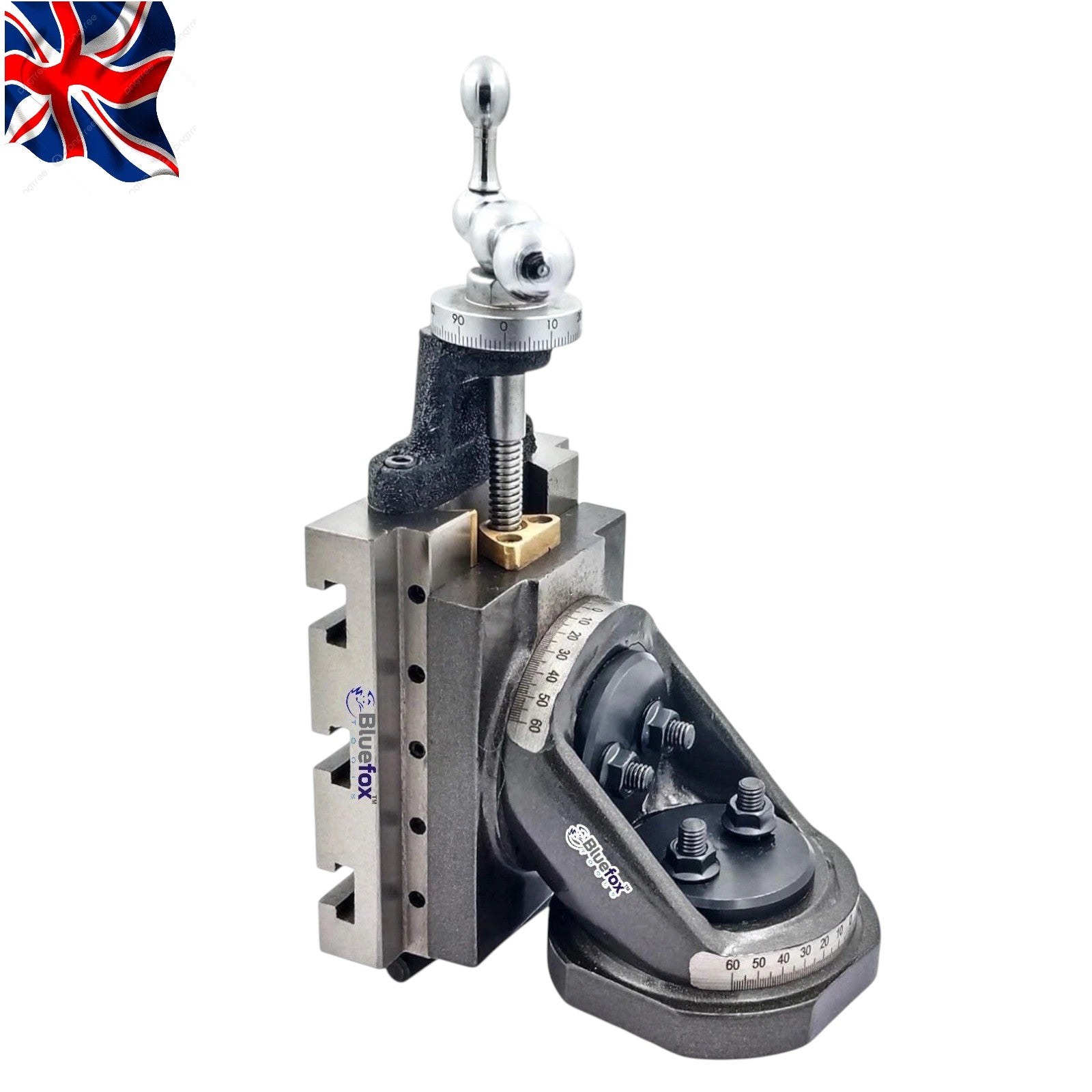

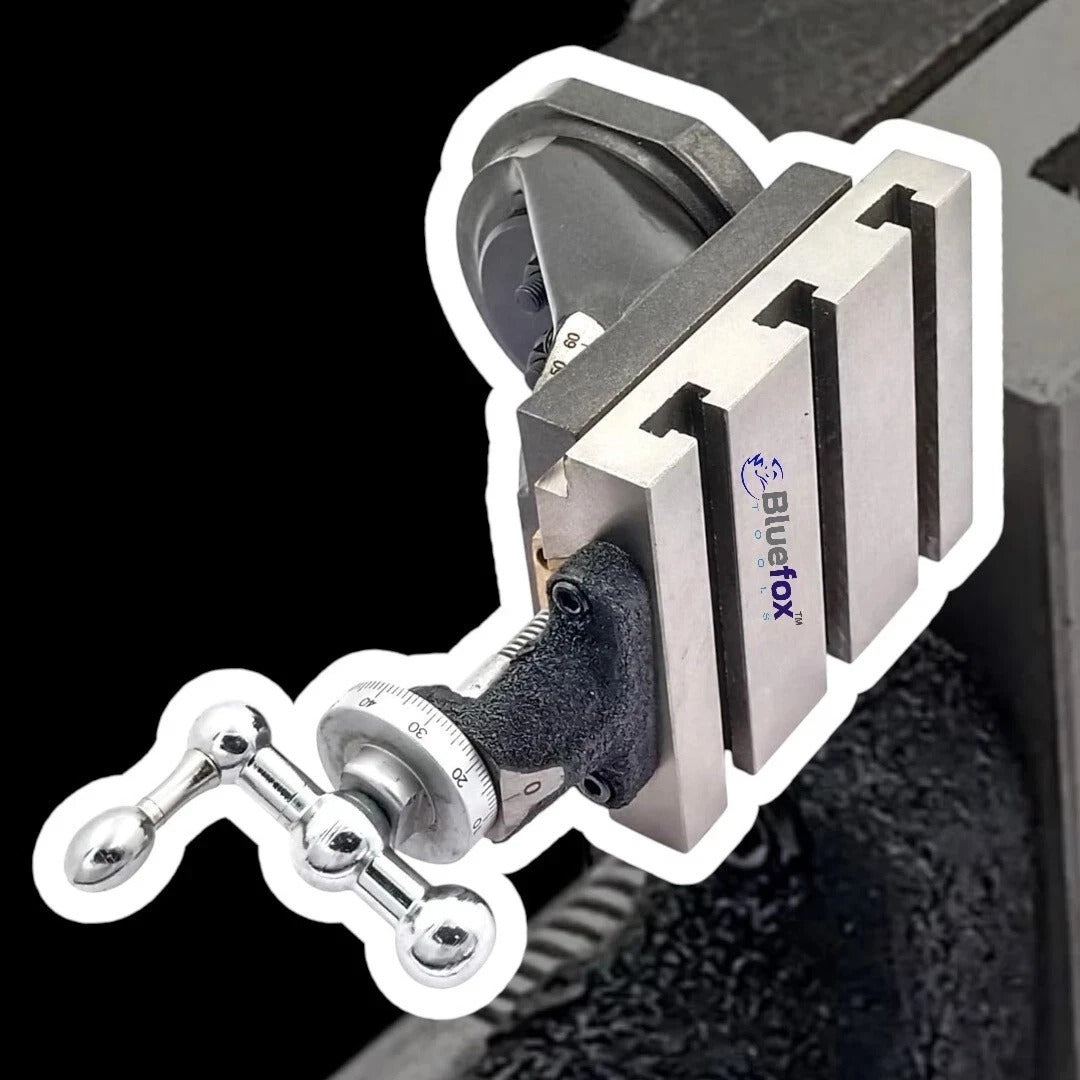

xPrecision Vertical Milling Attachment for Myford ML7 & Super 7 Lathes
The BLUEFOX Vertical Milling Slide with Swivel Base is a versatile milling attachment designed specifically for Myford ML7 and Super 7 lathes, while also being adaptable to many other popular lathe models. This attachment transforms your lathe into a compact milling machine, allowing accurate milling, slotting, drilling, keyway cutting, and machining operations without the need for a dedicated milling machine.
Featuring a double swivel design, the slide provides enhanced flexibility for angular machining and complex setups. Both swivel axes are fully graduated in metric increments, enabling precise adjustment and repeatable positioning.
Constructed from robust cast iron and precision-machined components, the slide offers excellent rigidity and stability for workshop, toolroom, and model engineering applications.
Key Features
- Direct fit for Myford ML7 and Super 7 lathes
- Double swivel design for maximum versatility
- Fully graduated metric scales
- Precision-machined slideways
- Converts a lathe into a compact milling machine
- Suitable for milling, slotting, drilling and machining
- Heavy-duty cast iron construction
- Smooth feed mechanism for accurate positioning
- Compact workshop-friendly design
- Professional engineering quality

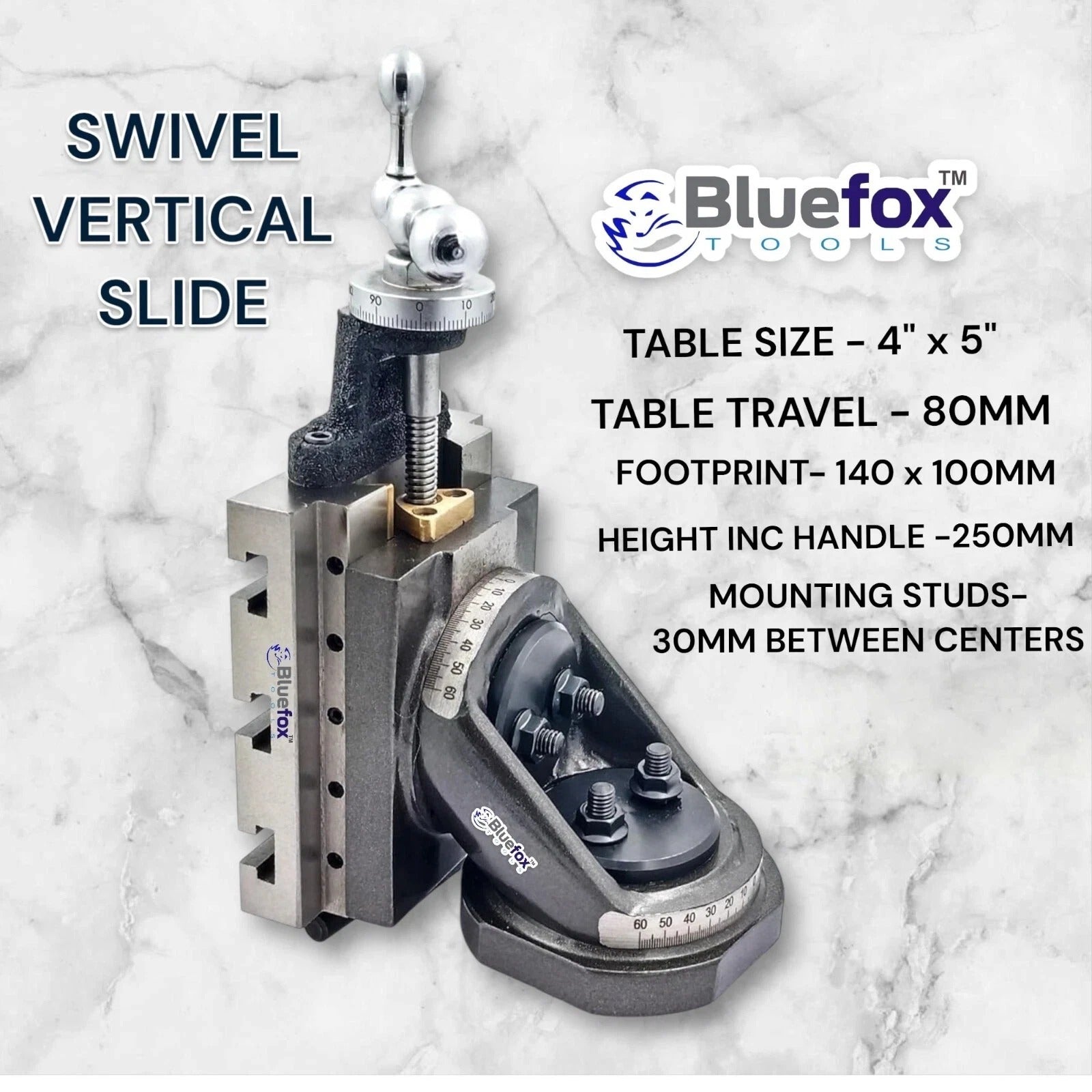

Specifications
| Specification | Details |
|---|---|
| Table Size | 100mm × 125mm (4" × 5") |
| Table Travel | 80mm |
| Footprint | 140mm × 100mm |
| Overall Height (Including Handle) | 250mm |

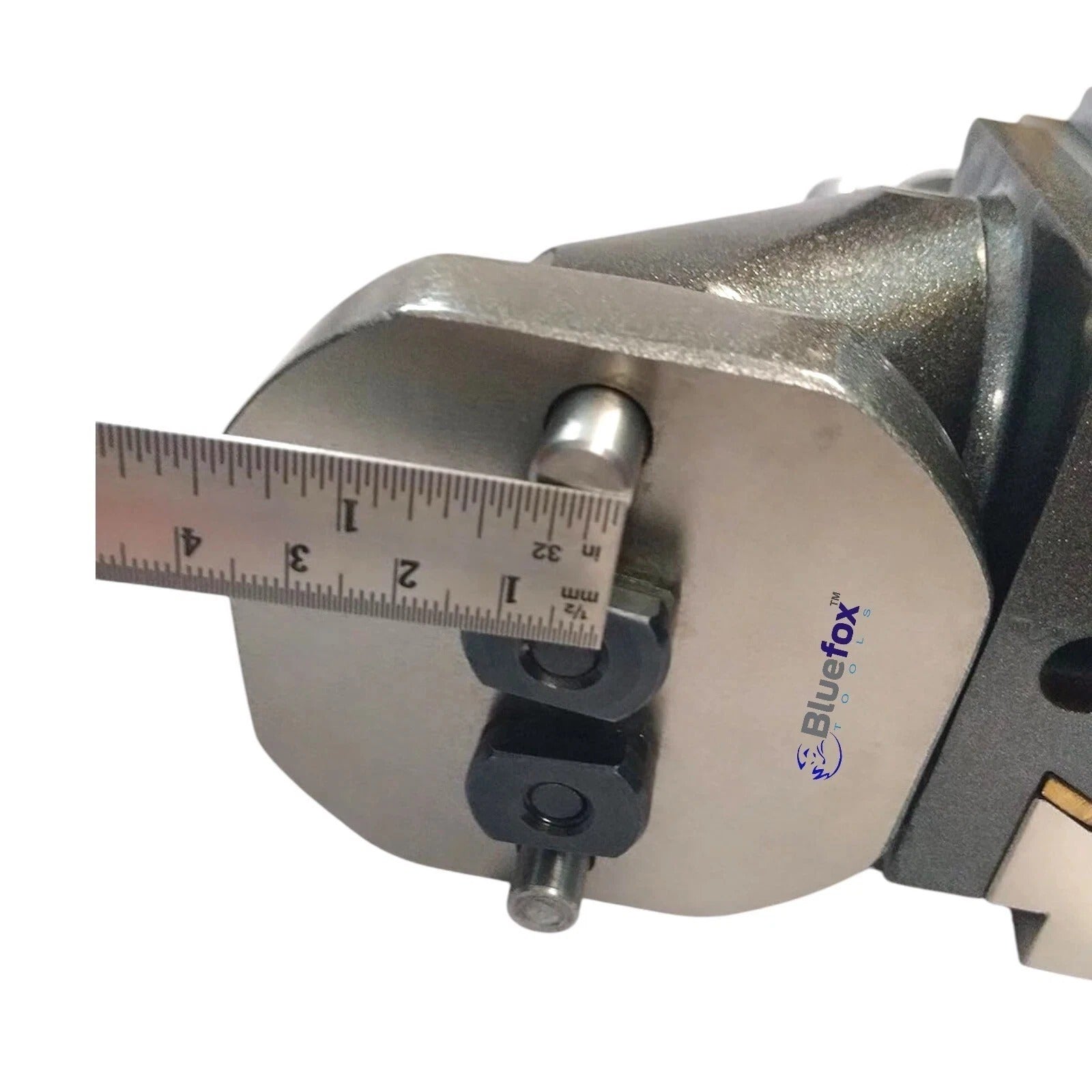

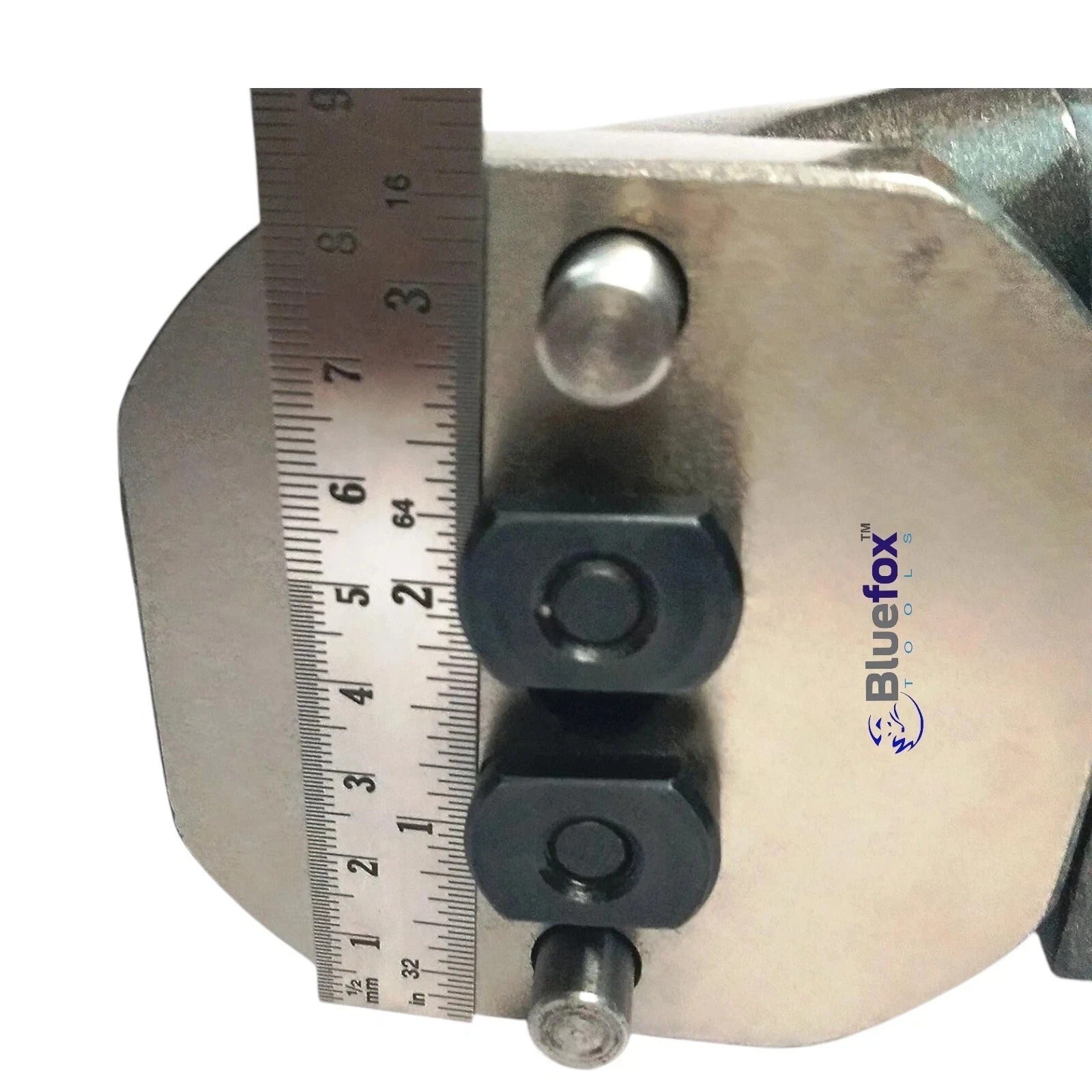

| Mounting Stud Centres | 30mm |
| Swivel Function | Double Swivel |
| Graduations | Metric |
Applications
- Milling operations
- Slot cutting
- Keyway machining
- Drilling operations
- Precision machining
- Toolmaking
- Model engineering
- Prototype work
- Workshop fabrication
- Small component production
Benefits
Double Swivel Adjustment
Allows machining at multiple angles for increased flexibility and precision.
Lathe Milling Capability
Transforms your existing lathe into a practical milling solution.
Accurate Positioning
Graduated scales provide precise and repeatable setup adjustments.
Compact Workshop Solution
Ideal where workshop space is limited and a dedicated milling machine is not available.
Strong and Stable Construction
Heavy-duty design minimizes vibration and improves machining accuracy.
Compatibility
Direct fit for:
- Myford ML7
- Myford Super 7
May also fit other machines with compatible mounting arrangements. Please verify mounting dimensions before purchase.
Typical Operations
- Face milling
- End milling
- Slotting
- Drilling
- Keyway cutting
- Machining flat surfaces
- Small component fabrication
- Precision engineering projects
Package Includes
- 1 × Vertical Milling Slide
- Integrated Double Swivel Base
- Feed Handle Assembly
- Mounting Hardware (where supplied)
