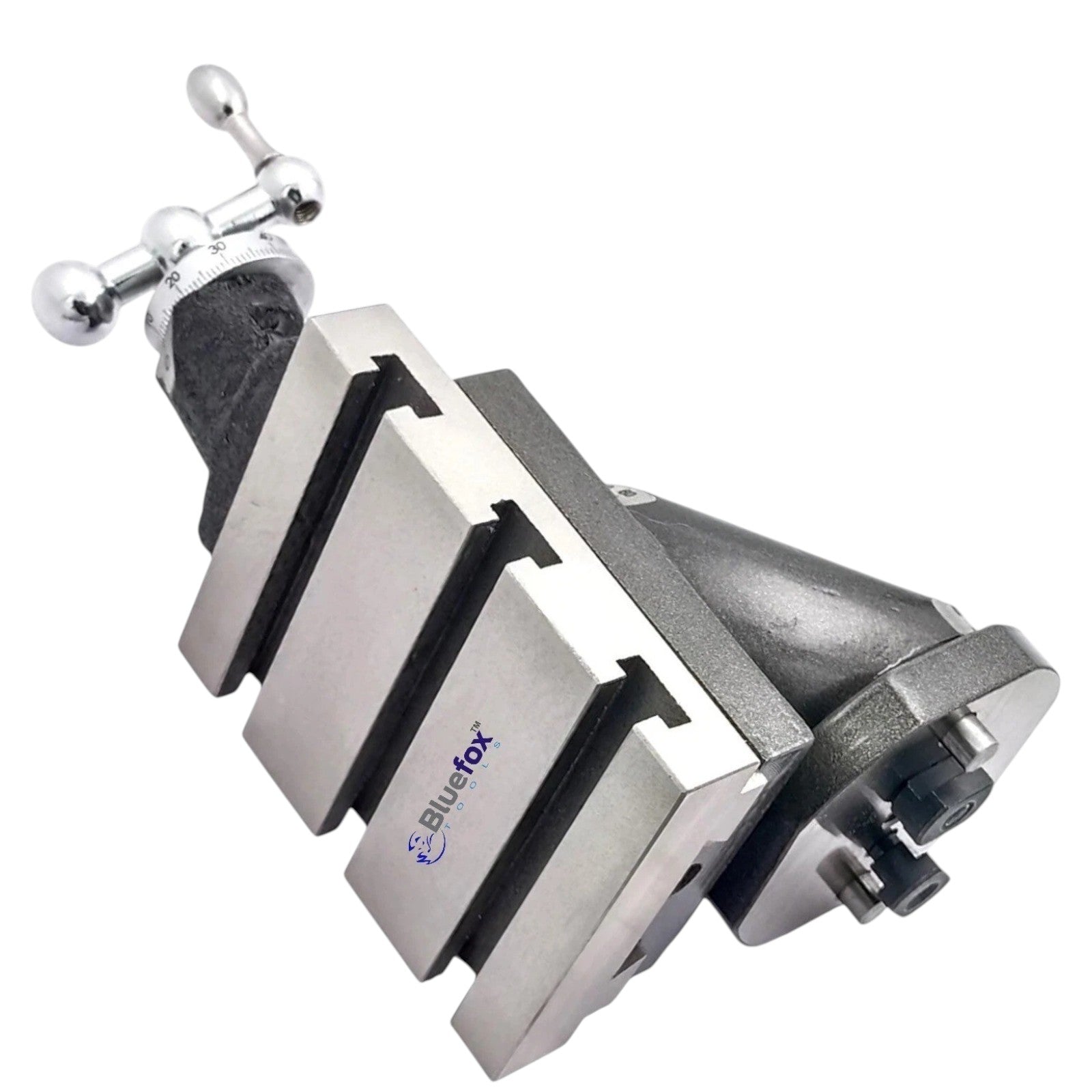

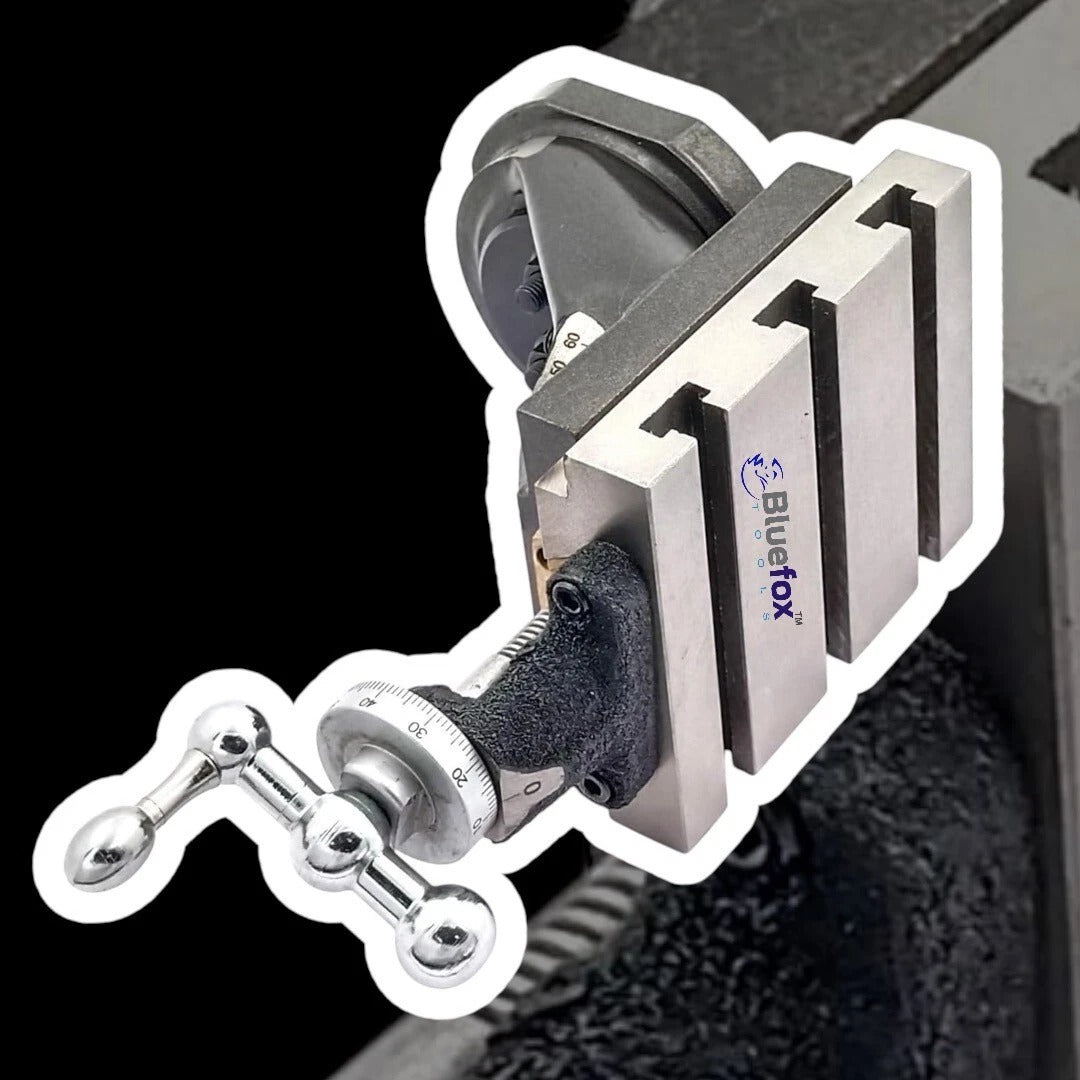

Precision Vertical Milling Slide with Double Swivel Base for ML7 & Super 7 Lathes

Upgrade your lathe's capabilities with this 4" x 5" Vertical Milling Slide with Swivel Base, specially designed for Myford ML7 and Super 7 lathes. This versatile attachment transforms your lathe into a compact milling machine, allowing accurate milling, drilling, slotting, shaping, and machining operations without the need for a separate mill.

Featuring a double swivel action and fully graduated metric scales, the slide provides exceptional flexibility for angular and precision machining tasks. Manufactured from high-quality cast iron and precision-machined components, it offers rigidity, stability, and smooth operation for workshop, model engineering, and tool room applications.

The unit is supplied with a robust swivel base, enabling accurate positioning and machining at multiple angles.

Key Features

  • Direct fit for Myford ML7 and Super 7 lathes
  • Double swivel base for increased versatility
  • Fully graduated metric scales
  • Converts a lathe into a compact milling machine
  • Suitable for milling, drilling, slotting and shaping operations
  • Precision-machined construction
  • Rigid and stable design
  • Smooth table movement for accurate machining
  • Ideal for model engineering and workshop use
  • Compatible with many similar lathe models

Specifications

Specification Details
Product Type Vertical Milling Slide
Table Size 4" x 5" (100mm x 125mm)
Table Travel 80mm
Footprint 140mm x 100mm
Overall Height 250mm

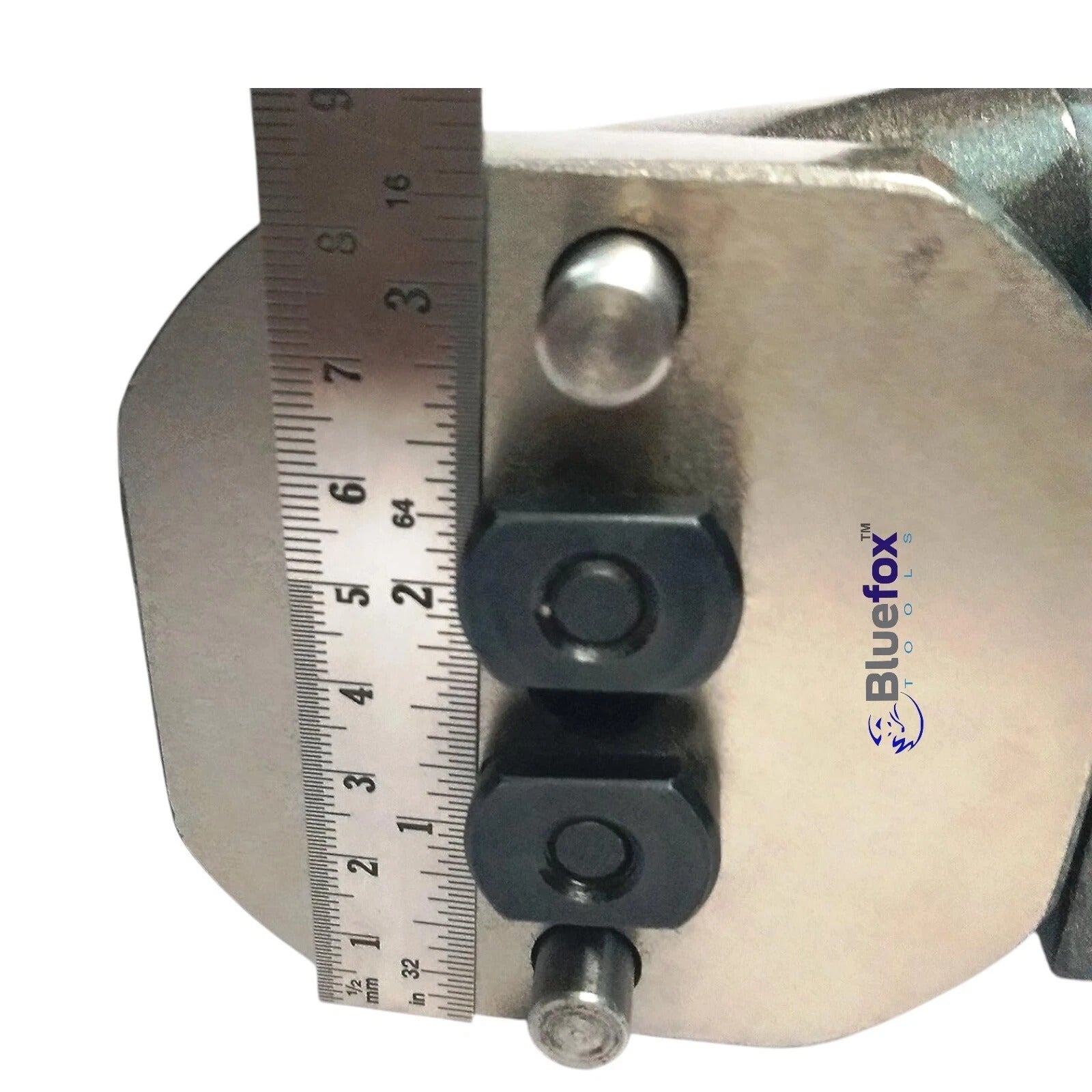

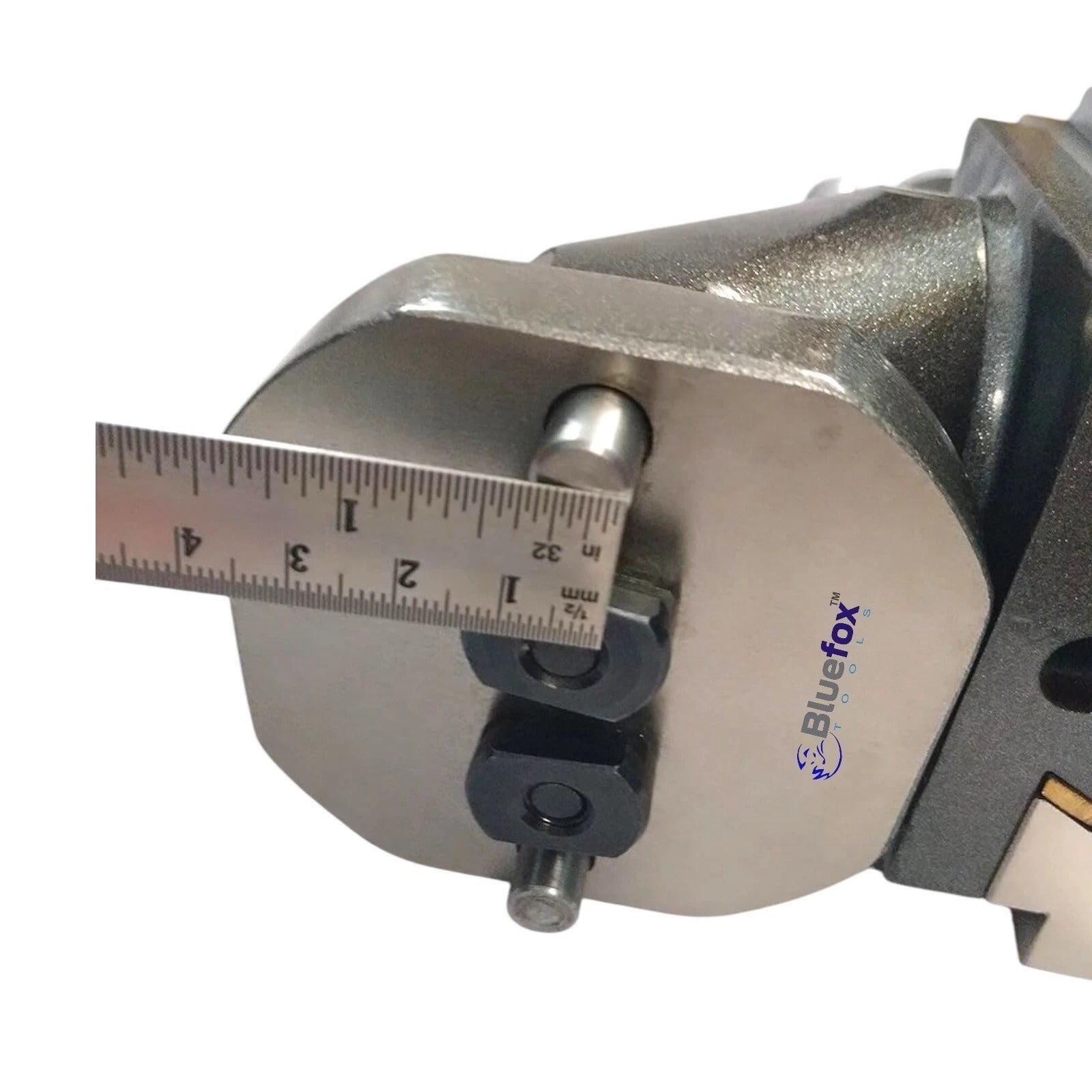

Mounting Stud Centres 30mm
Swivel Type Double Swivel Base
Graduations Metric
Compatibility ML7, Super 7 & Similar Lathes

Applications

  • Milling operations
  • Slot cutting
  • Drilling
  • Keyway machining
  • Precision shaping
  • Angular machining
  • Tool room work
  • Model engineering
  • Prototype manufacturing
  • General metalworking

Benefits

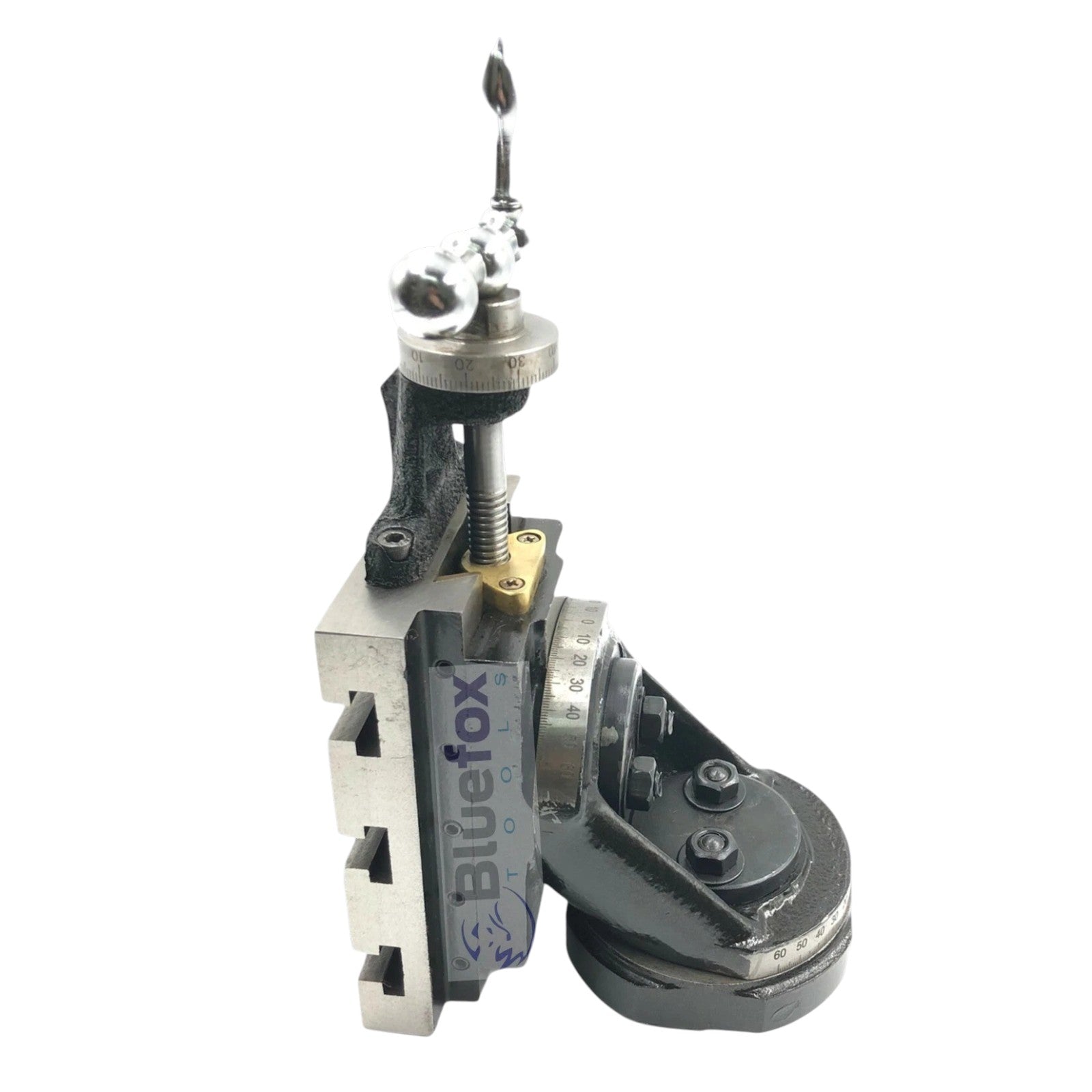

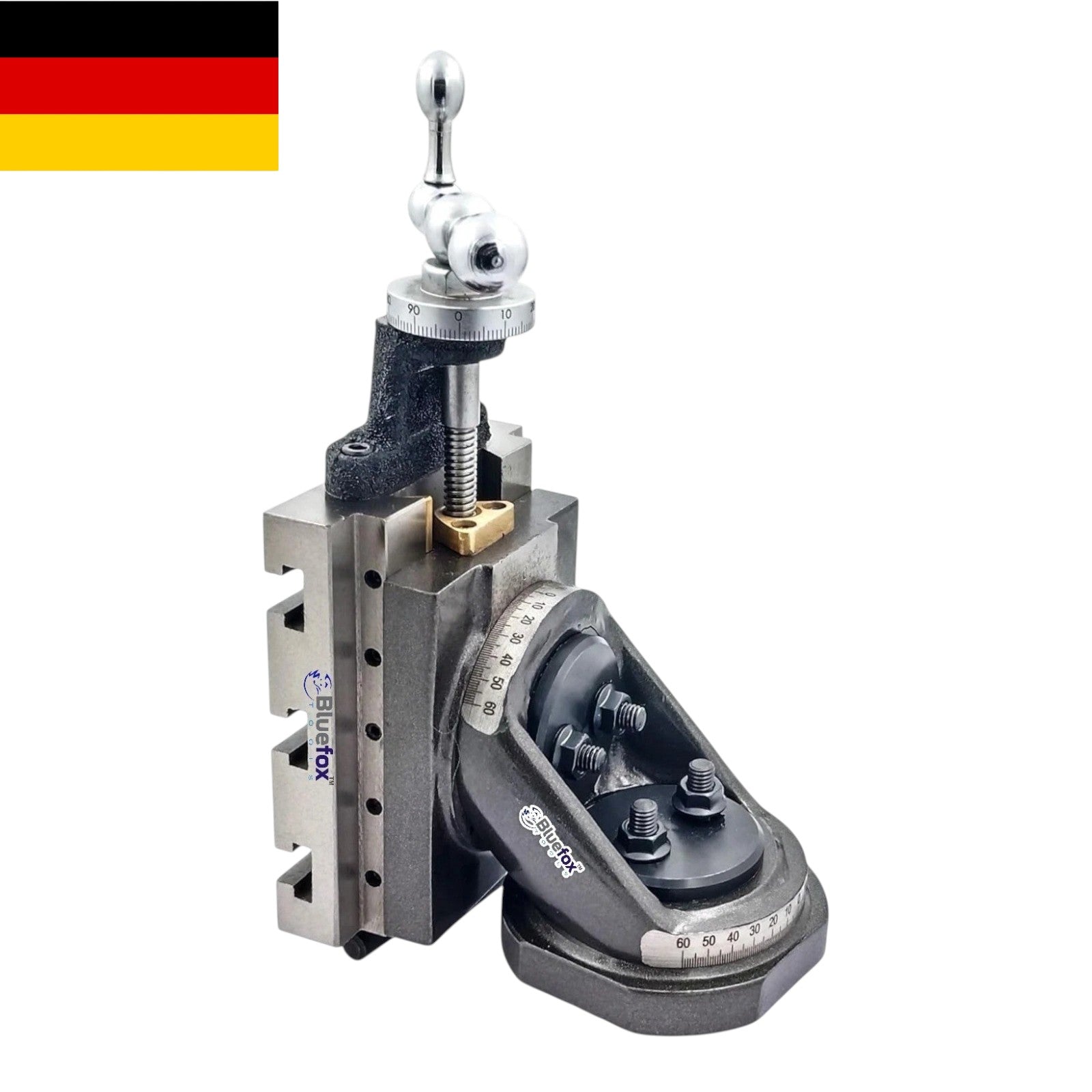

Double Swivel Function

Allows accurate angular positioning for complex machining operations.

Expanded Lathe Capability

Perform milling tasks directly on your lathe without requiring a dedicated milling machine.

Precision Control

Graduated scales and smooth slide movement provide accurate positioning.

Heavy-Duty Construction

Designed for rigidity and long-term workshop use.

Easy Installation

Direct fit for Myford ML7 and Super 7 lathes and adaptable to many similar machines.

Suitable For

  • Myford ML7 Lathes
  • Myford Super 7 Lathes
  • Bench Lathes
  • Model Engineering Workshops
  • Tool Rooms
  • Machine Shops
  • Hobby Machinists
  • Precision Engineering Applications

Package Includes

  • 1 × Vertical Milling Slide
  • 1 × Double Swivel Base Assembly
  • Mounting Hardware
